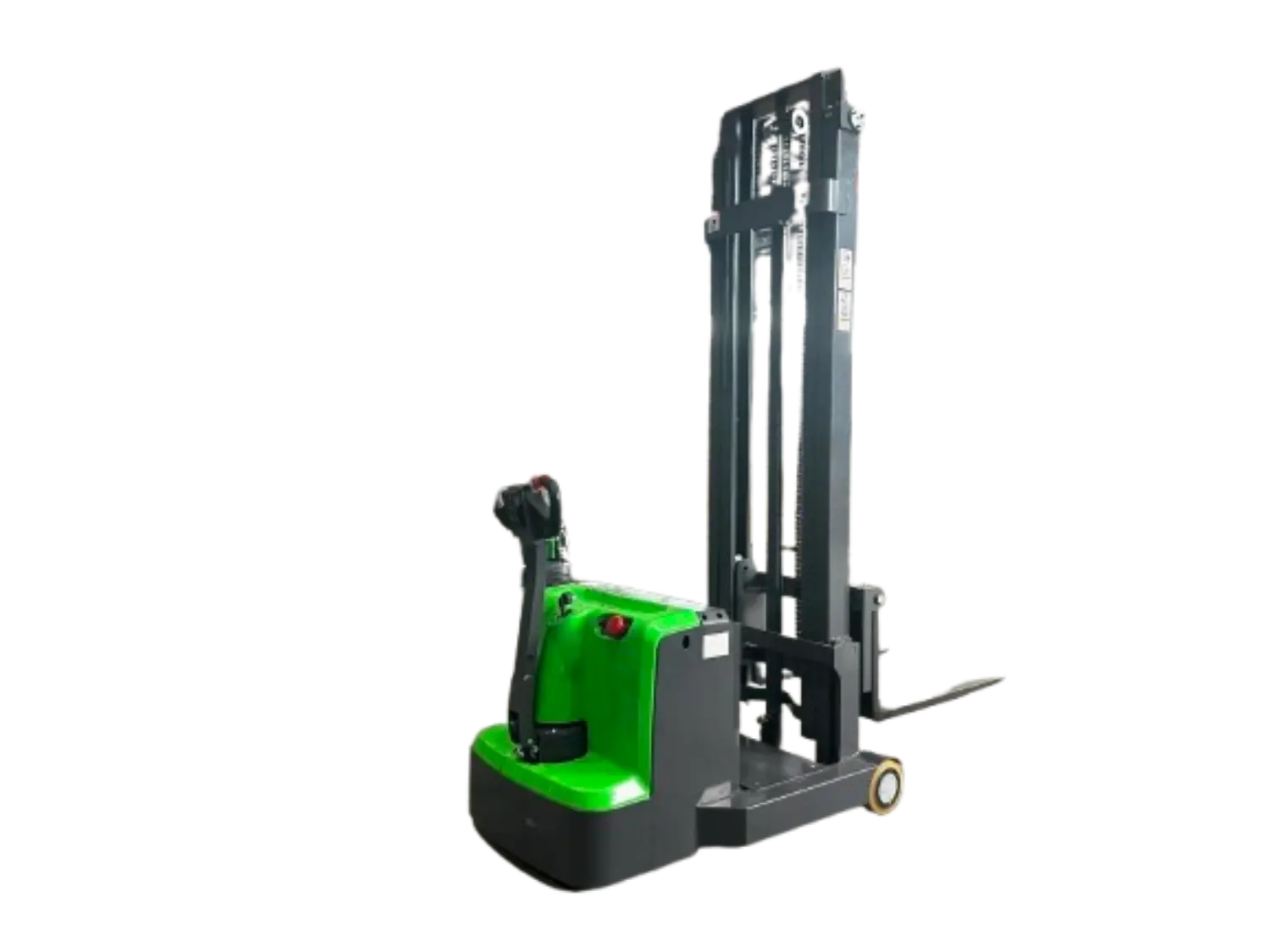

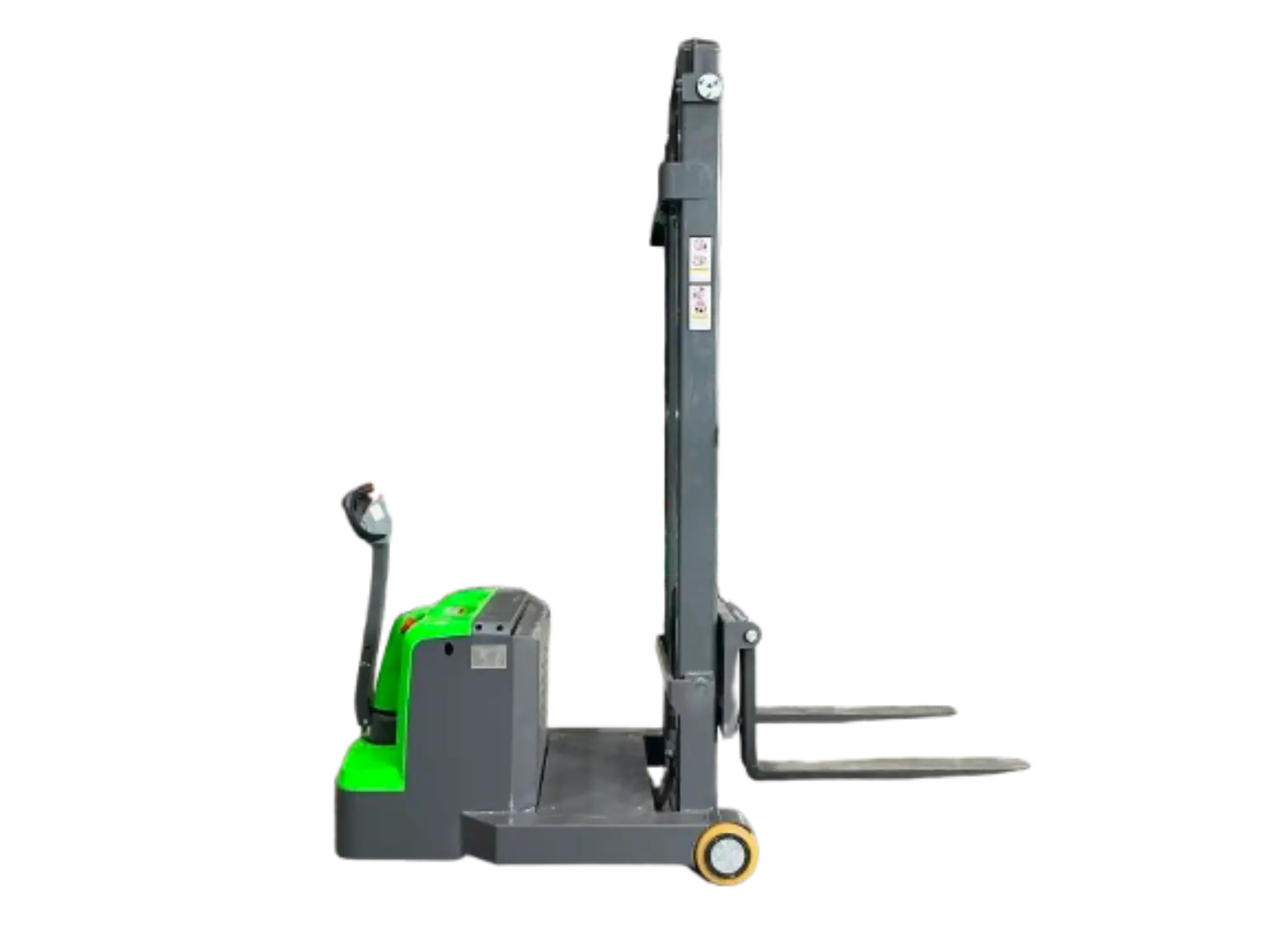

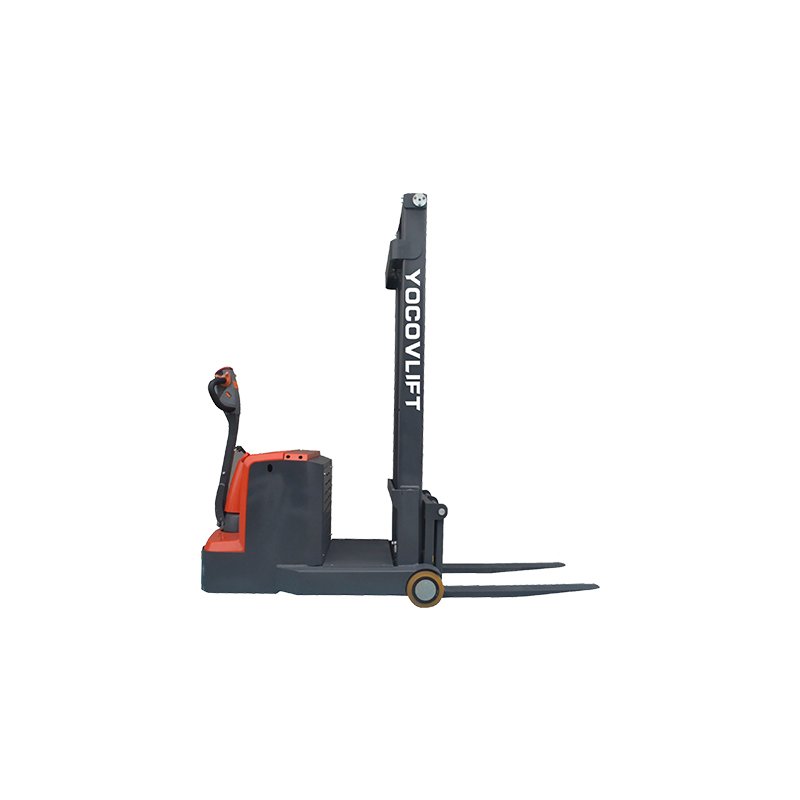

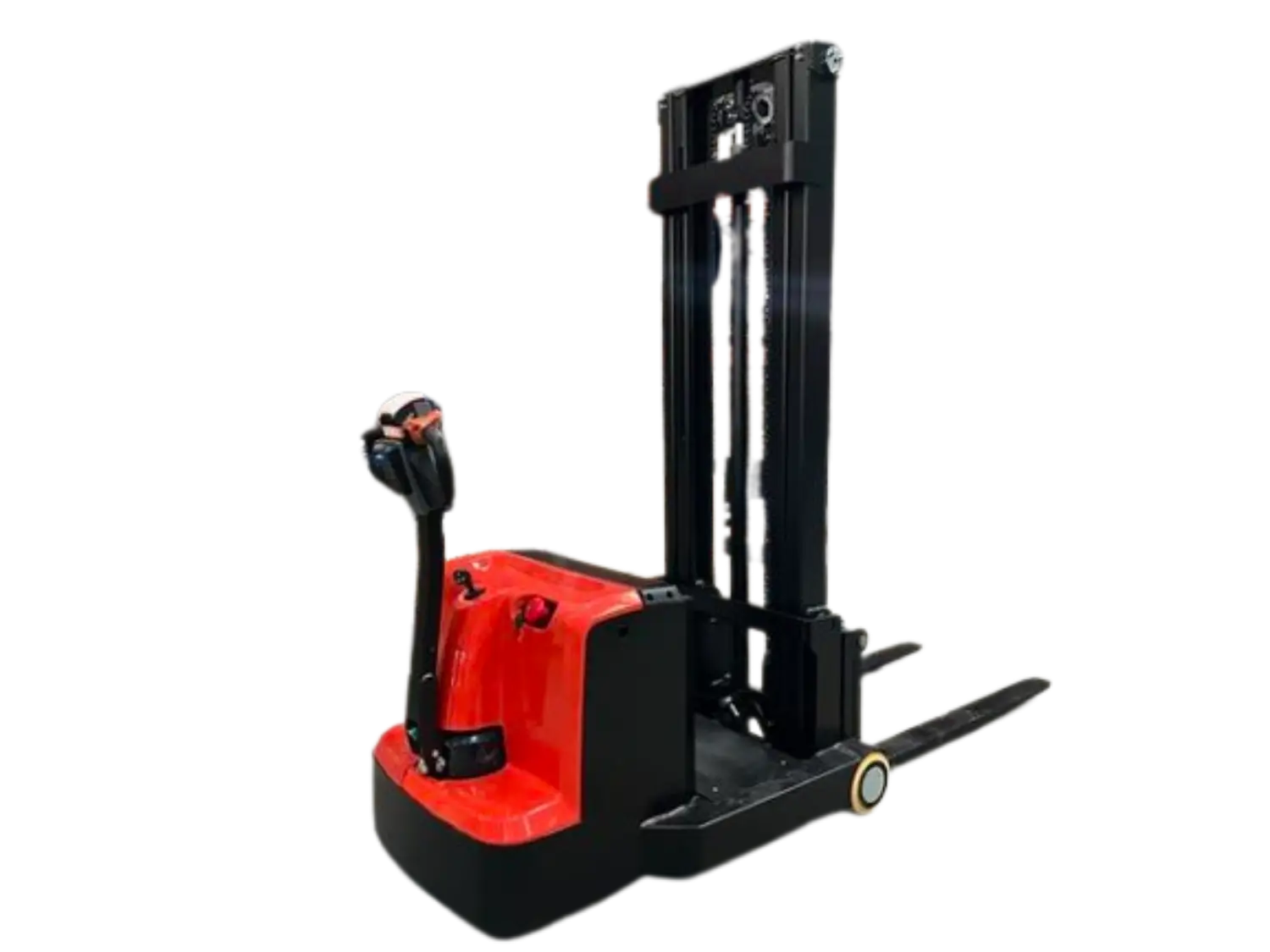

Electric Counterbalance Stacker ECS10J

Electric Counterbalance Stacker ECS10J - Image 3

Electric Counterbalance Stacker ECS10J - Image 4

Electric counterbalanced pedestrian stacker with 1000kg capacity, ideal for narrow aisles and high-rack stacking.

Smooth operation, high safety, and ergonomic control.

Additional information

Product Model	ECS10J
Load Capacity	1000KG
Lift Height	1600~3500mm
Battery	Lead Acid Battery, Lithum Battery

Product Details:

1. Small size, light weight, suitable for narrow channels, with high lifting, high load, and small turning radius;

2. Standard emergency stop switch, when the vehicle is in a dangerous state, press the emergency stop switch can cut off the power supply, The vehicle shuts down to protect the safety of the operator and equipment;

3. A groove is arranged above the main car body, which not only .Increase vehicle aesthetics, but also facilitates the operator to temporarily place small working items;

4. Wide field of vision frame design, so that the operator has a wide field of vision, operation efficiency and safety performance can be improved;

5. Large capacity maintenance-free battery, built-in charger, convenient for customers to use;

6. The front baffle is easy to disassemble, and the battery replacement is simple and quick;

Characteristics	Model		ECS1016J	ECS1020J	ECS1025J	ECS1030J	ECS1035J
	Power unit		Electric
	Operation		Pedestrian
	Rated traction weight	Q (t)	1
	Load centre	c (mm)	400
	Axle centre to fork face	x (mm)	101
	Wheel base	y (mm)	1000
Weights	Service weight with battery	kg	1365	1410	1420	1430	1440
Wheels/Tyres	Wheels type		Polyurethane
	Driving wheel size	Φ×w(mm)	Φ210×70
	Bearing wheel size	Φ×w(mm)	Φ178×73
	Wheels, number front/rear (x = driven)		1x/2
	Track width	b10 (mm)	0
	Track width	b11 (mm)	803
Dimensions	Height of mast, lowered	h1 (mm)	2072	1553	1803	2053	2303
	Lift	h3 (mm)	1600	2000	2500	3000	3500
	Height of mast, extended	h4 (mm)	2072	2533	3033	3533	4033
	Overall height(With handle	h14 (mm)	730/1165
	lowered hength	h13 (mm)	40
	Overall length	l1 (mm)	2086
	Length to fork face	l2 (mm)	1236
	Overall width	b1/ b2 (mm)	878
	Fork dimensions	s/e/l (mm)	35/100/820
	Width of forks	b5 (mm)	220-640
	Min.Ground clearance	m2 (mm)	60
	Aisle width with pallet 1000 x 1200 across forks	Ast (mm)	2635
	Aisle width with pallet 800 x 1200 along forks	Ast (mm)	2742
	Min.Turning radius	Wa (mm)	1175
Performance	Travel speed,laden/unladen	(km/h)	4.0/4.2
	Lifting speed, with/without load	(mm/s)	92/136
	Lowering speed, with/without load	(mm/s)	112/98
	Maximum climbing ability, with/without load	(%)	5/10
	Service brake		Electromagnetic
Drive	Drive motor, 60 minute rating	(kW)	0.75
	Lift motor rating at S3 15%	(kW)	2.2
	Battery voltage/rated capacity	(V/Ah)	2×12/120
	Battery weight (± 5%)	(kg)	2×41
Others	Type of drive control		DC
	Noise level at operator‘s ear	(dB(A))	≤75
	Type of steering		Mechanical
