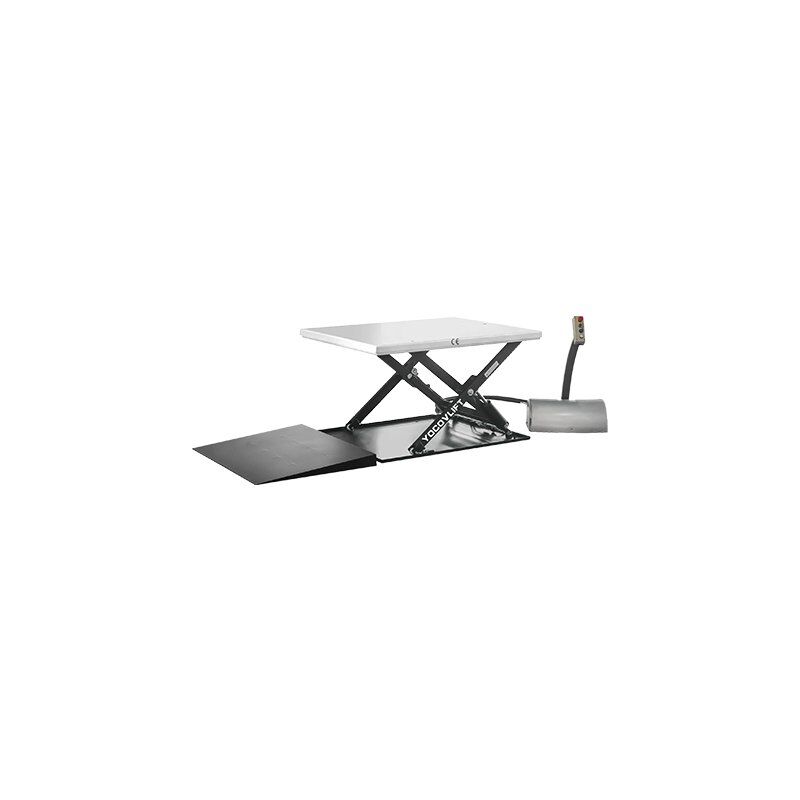

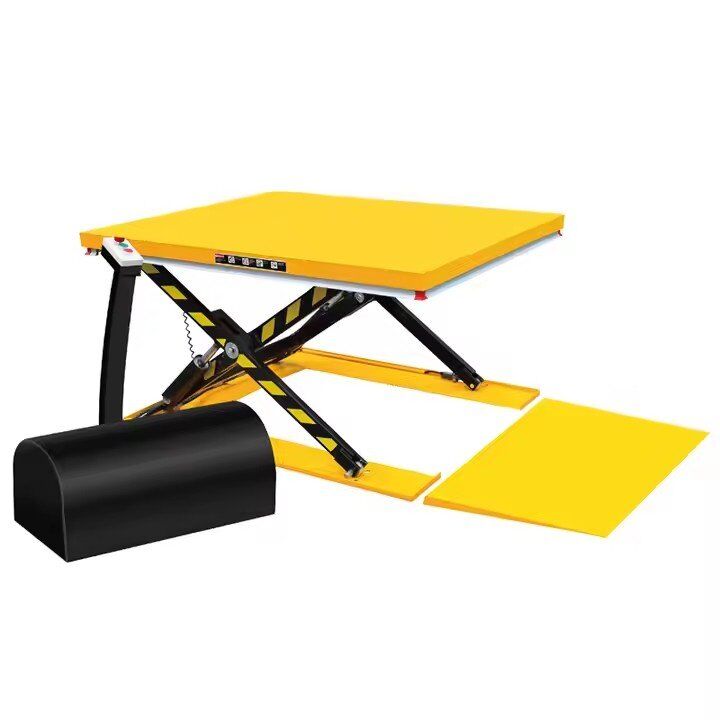

Electric Lifting Platform HTF-G05

Electric lift platform with ramp for easy loading
Compact hydraulic system meets EN1570 safety standard
U-shape frame with reliable lifting cylinder
Ideal for pallet handling in warehouse & logistics

Additional information

Product Model	HIF-G10, HIF-G20, HTF-G05
Load Capacity	1000KG, 2000KG, 500KG

Product Details:

Compact hydraulic electric lift table equipped with integrated ramp for easy manual or electric pallet truck access
Designed with high-pressure hydraulic cylinder and dual safety system, ensuring lifting stability and safety
Hard chrome-plated piston rods provide enhanced corrosion resistance and service life
Emergency stop switch and 3-meter control cable ensure safe and flexible operation
Fully compliant with EN1570 European safety standard for industrial lifting equipment
Ideal for ground-level loading/unloading without the need for pit installation
Available in 500kg, 1000kg, and 2000kg capacities with multiple table sizes
Optional single-phase or three-phase voltage for versatile power compatibility

Technical Specifications – YOCOV HTF-G Series (with Ramp)

Model	Capacity (kg)	Platform Height (mm)	Platform Size (mm)	Net Weight (kg)	Lifting Time (s)	Lifting Speed (mm/s)	Lowering Speed (mm/s)	Motor Power (kW)	Packing Qty (pcs/pallet)	Packing Size (mm)	Optional Voltage
HTF-G05	500	85–760	1020 × 610	95	10	75	34	0.75	2	1470 × 1160 × 1500	Single-Phase 230V / 50Hz or Three-Phase 380V / 50Hz
HTF-G10	1000	82–760	1450 × 1140	250	18	42	48	0.75	2	1470 × 1160 × 1500	Single-Phase 230V / 50Hz or Three-Phase 380V / 50Hz
HTF-G20	2000	100–1000	1560 × 1140	376	55	16	23	0.75	2	1470 × 1160 × 1500	Single-Phase 230V / 50Hz or Three-Phase 380V /
