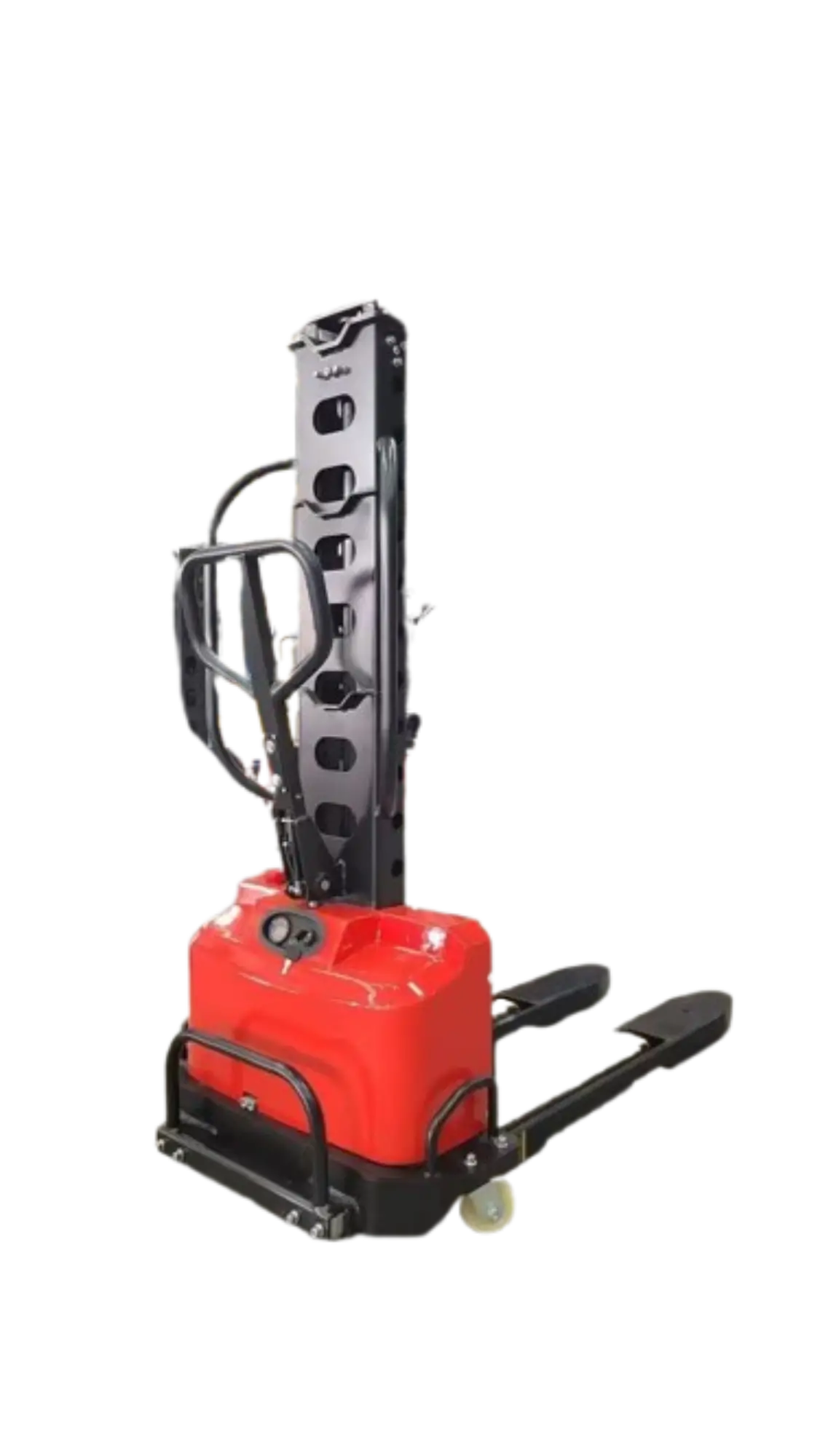

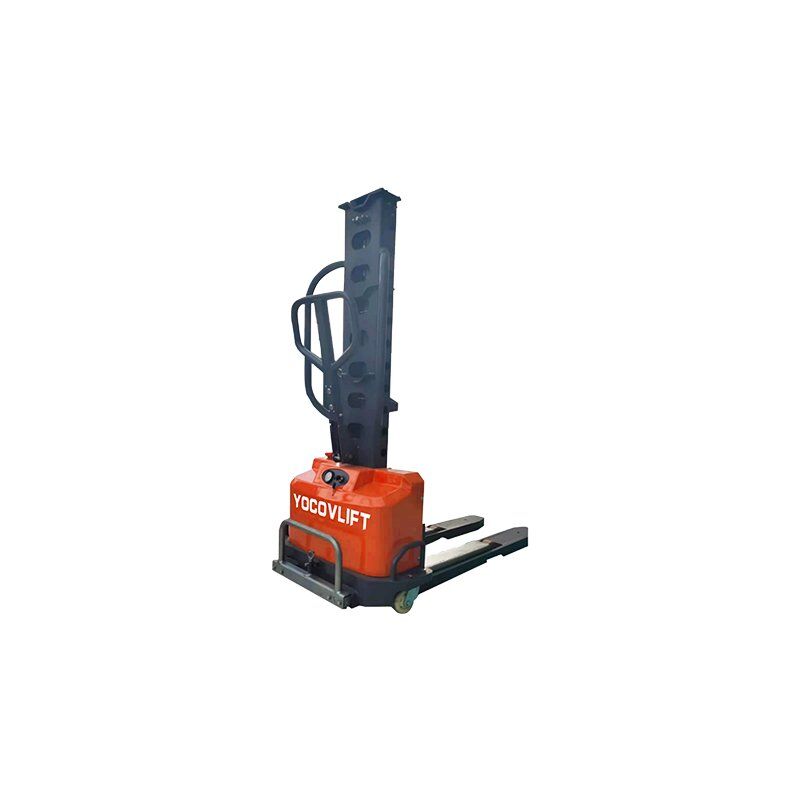

Electric Self-Lifting Stacker CDD05JZ

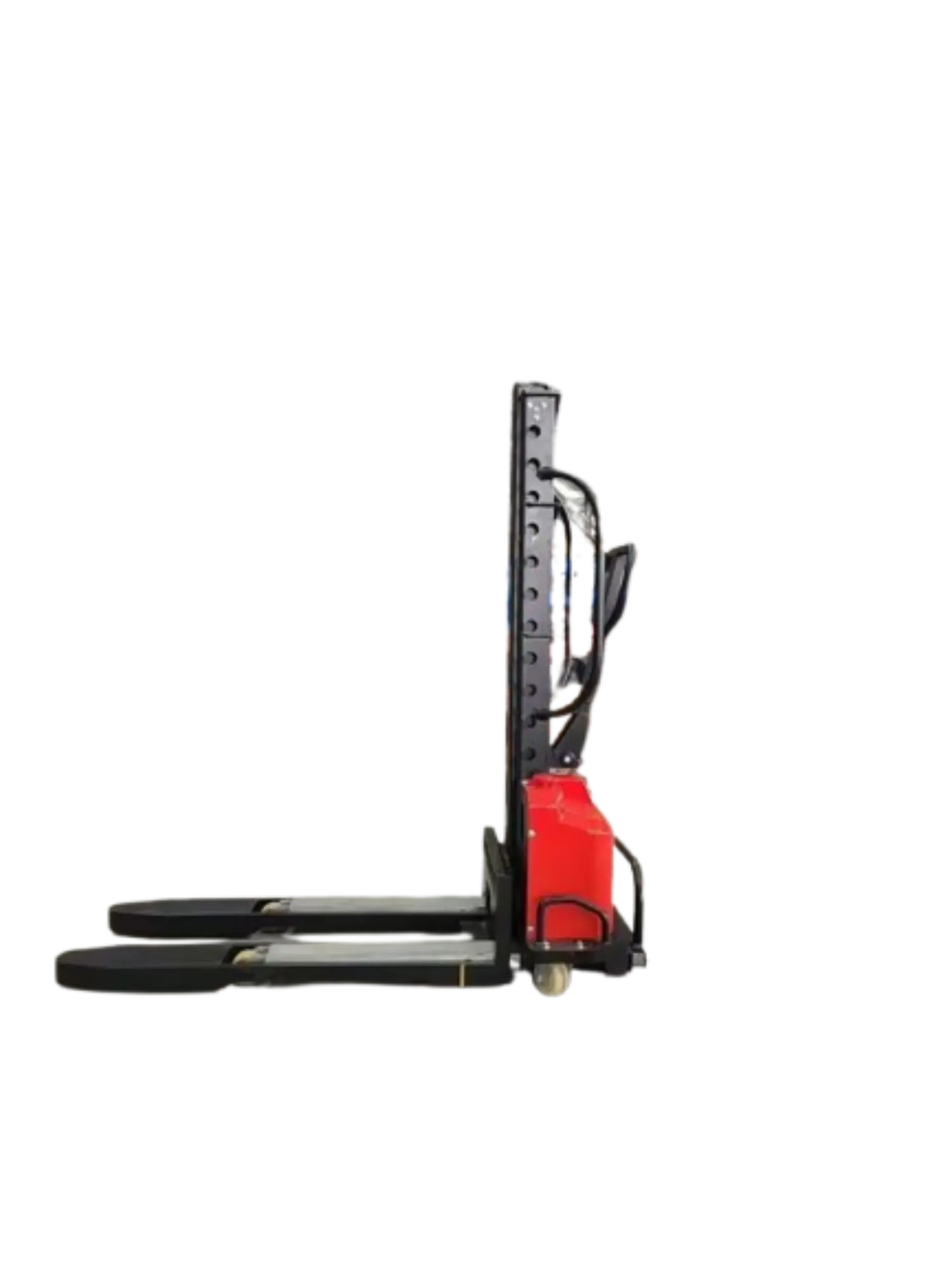

Electric Self-Lifting Stacker CDD05JZ - Image 3

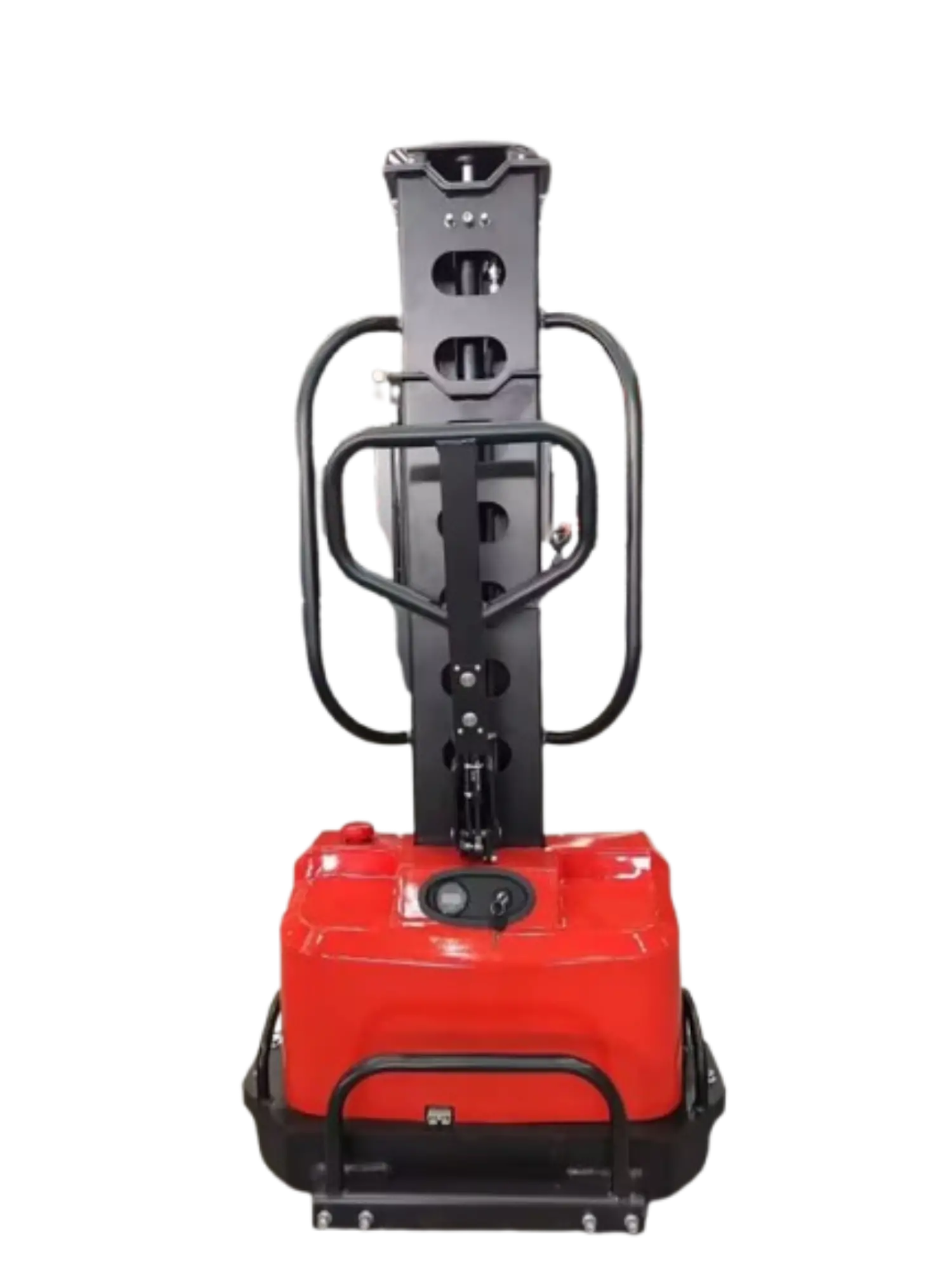

Electric Self-Lifting Stacker CDD05JZ - Image 4

Compact self-lifting electric stacker
Ideal for van loading, unloading, stacking and climbing
Electric operation with high stability and flexible control

Additional information

Product Model	CDD05JZ
Load Capacity	500KG
Lift Height	1500mm

Product Details:

Multi-functional design combines handling, stacking, climbing, and loading
Able to drive itself into trucks or containers for efficient cargo handling
Equipped with high-strength double cylinder system for synchronized lifting
Lightweight, compact body design allows easy one-person operation
Swinging guide wheel helps smoothly align and enter vehicle platform
PU wheels ensure quiet and smooth movement on warehouse floors
Integrated electric drive and lift powered by compact 12V battery
Ideal for logistics hubs, warehouse loading areas, and express delivery docks

Technical Specifications：

Model		CDD0511JZ	CDD0513JZ	CDD0515JZ
Capacity	Q(Kg)	500	500	500
Load center	C(mm)	400	400	400
Type of lifting		Electric	Electric	Electric
Operating type		Walkie	Walkie	Walkie
Material		Nylon/PU	Nylon/PU	Nylon/PU
Wheel base	y(mm)	850	850	850
Front wheel base	W1(mm)	380	380	380
Back wheel base	b10(mm)	672	672	672
Quantity of Steering/Bearing/Balance Wheel		2/2/6	2/2/6	2/2/6
Bearing wheel size	mm	Φ80×50	Φ80×50	Φ80×50
Steering wheel size	mm	Φ100×50	Φ100×45	Φ100×45
Balance wheel size	mm	Φ40×30	Φ40×30	Φ40×30
Training wheel size	mm	Φ30×30	Φ30×30	Φ30×30
Min.fork height	mm	90	90	90
Max.fork height	h3(mm)	1100	1300	1300
Fork outside width	W3(mm)	540	540	540
Fork inside width	mm	220	220	220
Fork length	L(mm)	1150	1150	1150
Single fork size	e/s(mm)	160X60	160X60	160X60
Overall length	L1(mm)	1555	1555	1555
Overall width	W(mm)	790	790	790
Overall height	H1(mm)	1417	1617	1817
Whole height(after tape file shelf)	H4(mm)	2670	2870	3070
Min.turning radius	Wa(mm)	1120	1120	1120
Lifting speed(laden/unladen)	mm/s	70/100	70/100	70/100
Lowering speed(laden/unladen)	mm/s	100/80	100/80	100/80
Lift motor	Kw	12/0.8	12/0.8	12/0.8
Battery capacity	V/Ah	12/33	12/33	12/33
Battery weight	Kg	10	10	10
Net weight	Kg	195	215	235
