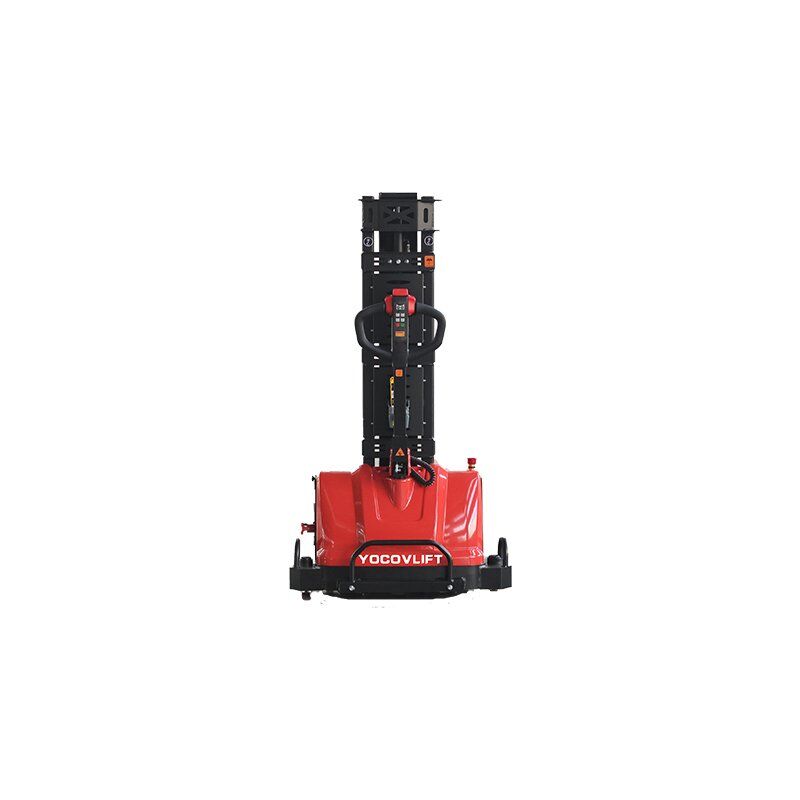

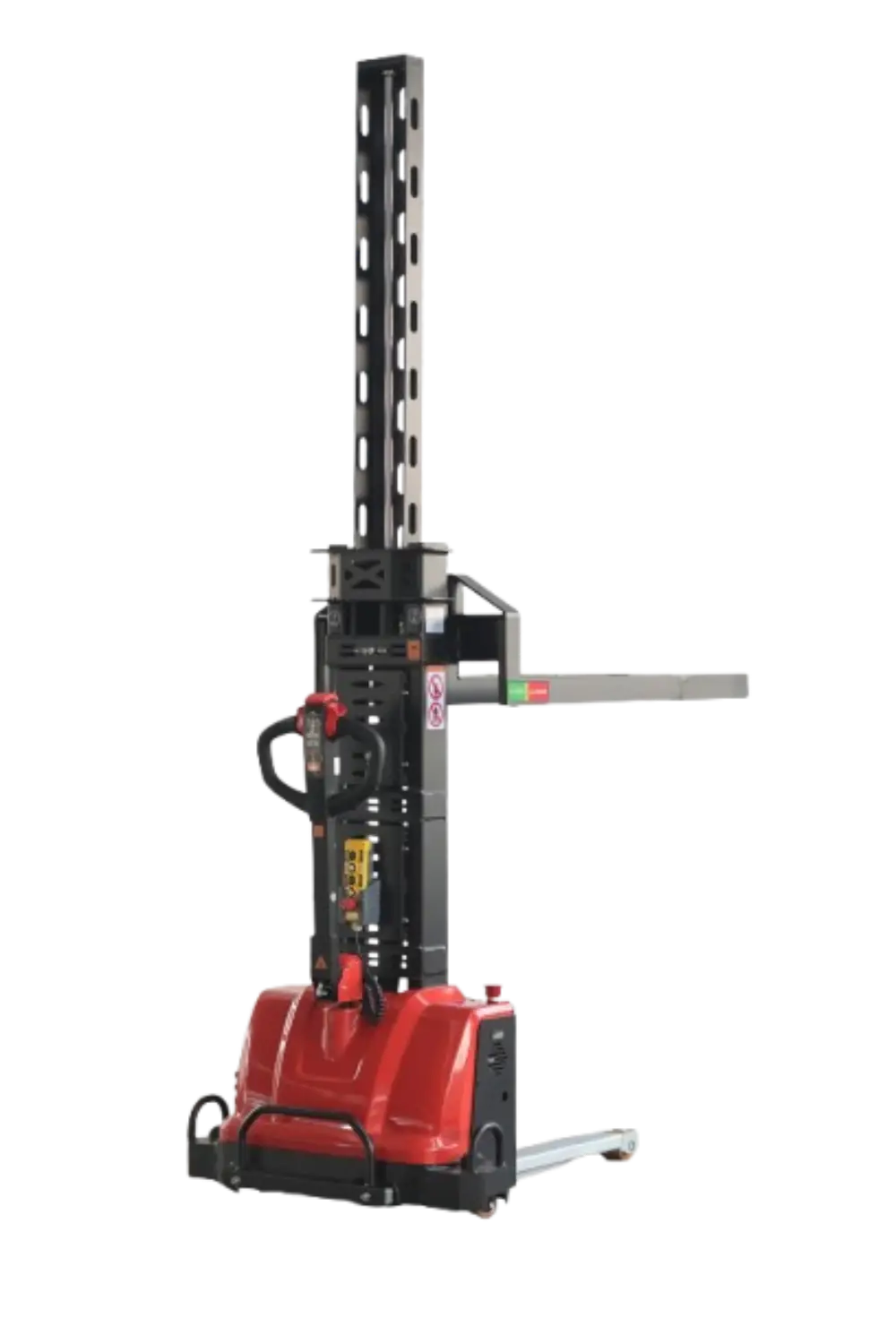

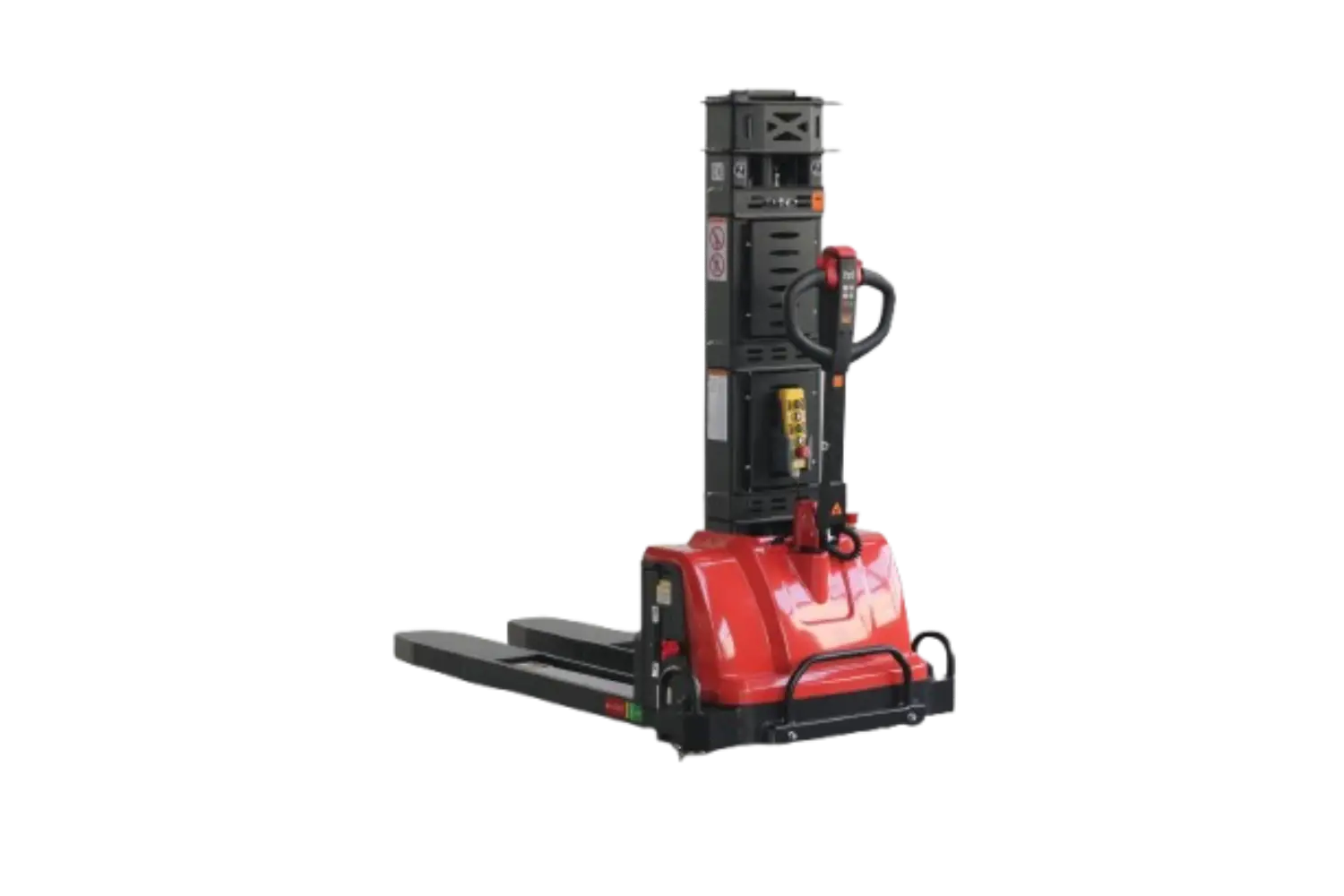

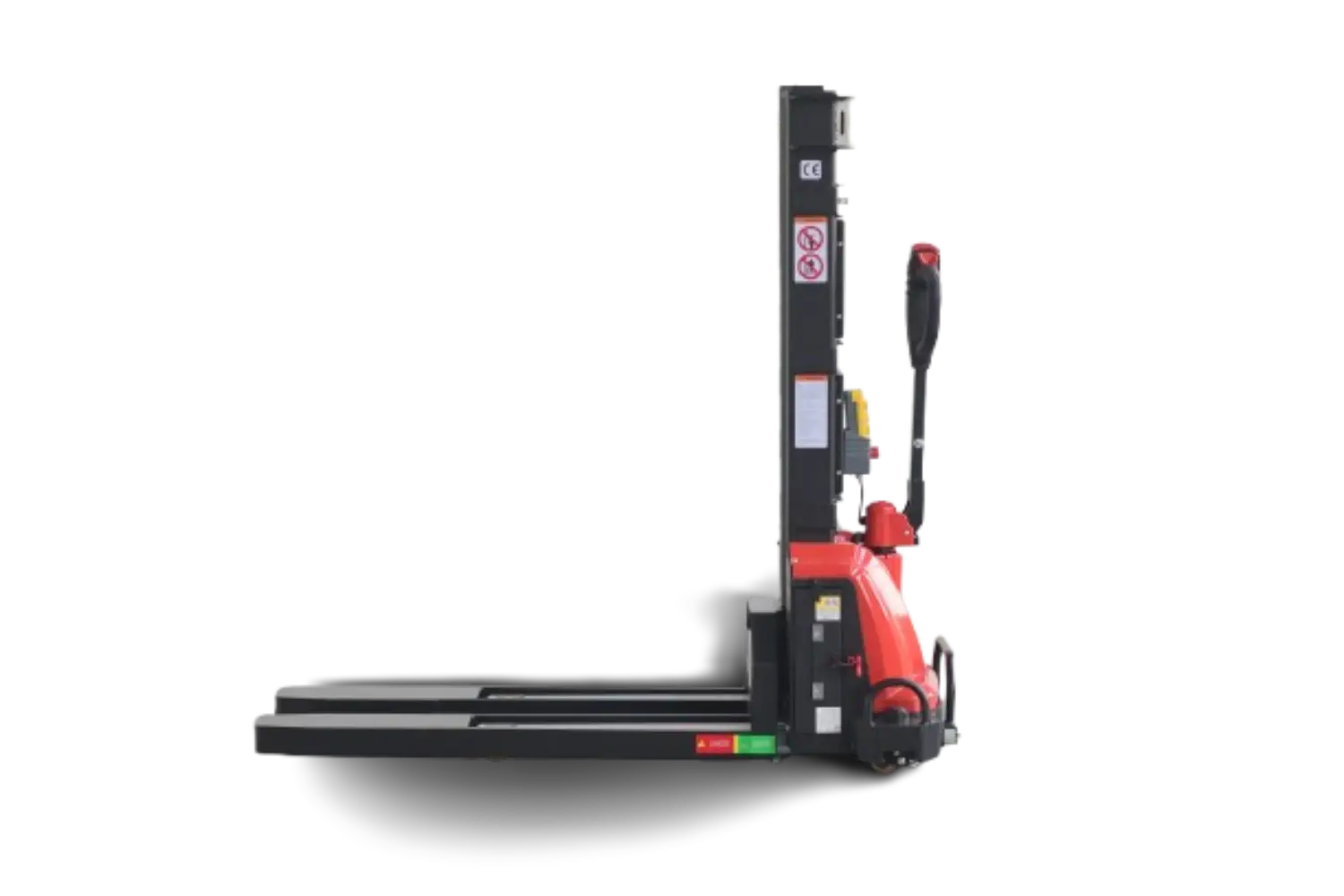

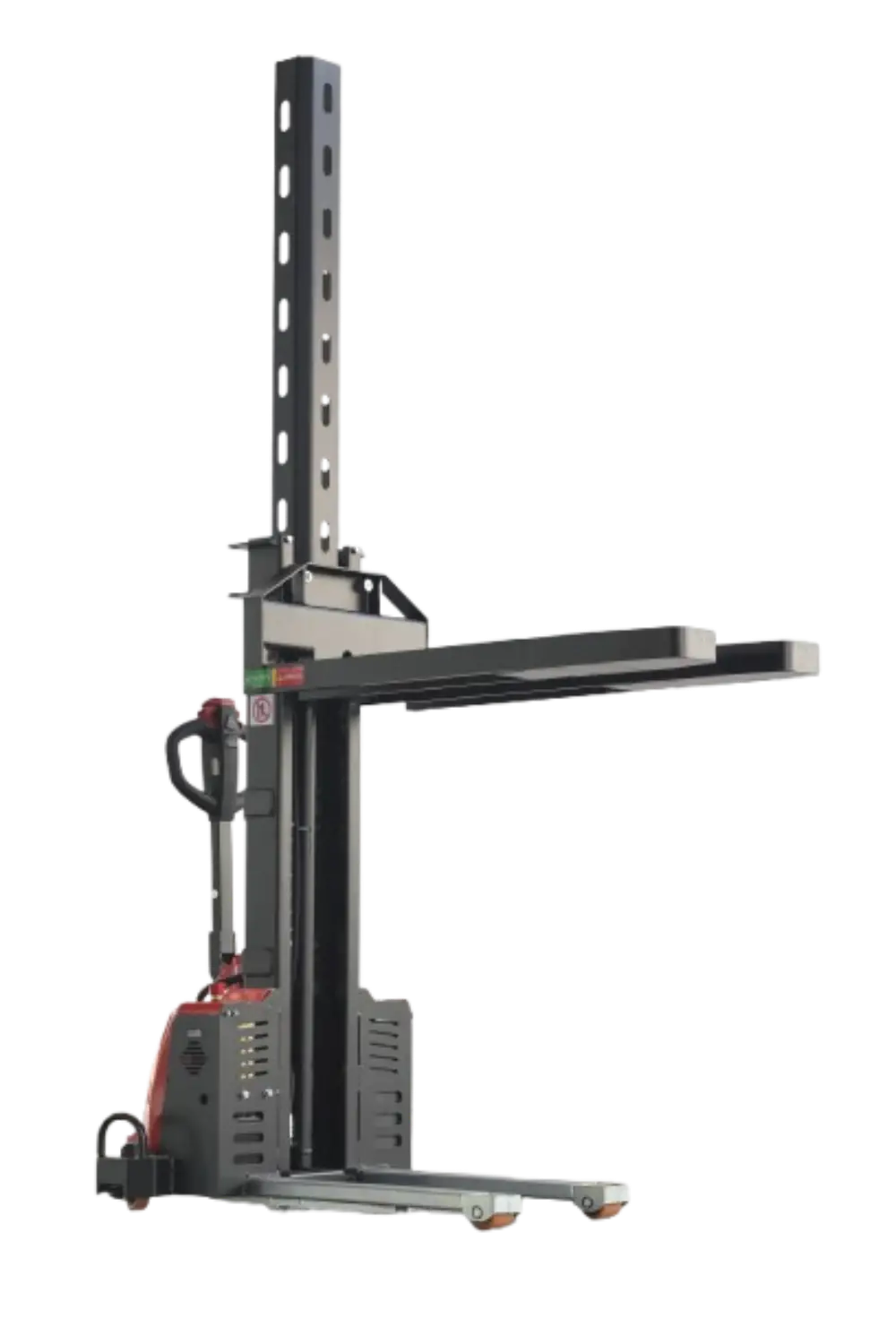

Electric self-lifting stacker with 1000–1500kg capacity, designed for efficient cargo handling
Compact body, suitable for tight spaces and various logistics applications
Equipped with replaceable lithium battery and CAN-BUS intelligent control
| Product Model | SES10, SES12 |
|---|---|
| Load Capacity | 1000KG, 1200KG, 1500KG |
| Lift Height | 900~1600mm |
| Battery | Lead Acid Battery, Lithum Battery |
Compact and multi-functional equipment integrating loading, unloading, and stacking
Supports loading directly into truck beds without additional equipment
High-strength chassis with durable flat iron legs for heavy-duty support
Magnetic movable key and optional pin-code handle for enhanced safety and control
CAN-BUS system monitors vehicle status and supports intelligent fault diagnosis
Equipped with emergency reverse, horn, slow-speed mode, and intuitive lifting control
Side-mounted lithium battery with quick replacement access
Available in multiple configurations: 1T, 1.2T, 1.5T, with lift heights up to 1650mm
Conforms to EN1570 safety standards
| Model | SES10 | SES12 | SES15 |
|---|---|---|---|
| Rated Load (Q) | 1000 kg | 1200 kg | 1500 kg |
| Load Center (c) | 600 mm | 600 mm | 600 mm |
| Wheelbase | 930 mm | 930 mm | 930 mm |
| Service Weight | 880 kg | 920 kg | 980 kg |
| Front Axle Load | 620 kg | 640 kg | 700 kg |
| Rear Axle Load | 260 kg | 280 kg | 280 kg |
| Tire Size (Front/Rear) | Ø130×70 mm | Ø130×70 mm | Ø130×70 mm |
| Additional Wheels | Ø75×32 mm | Ø75×32 mm | Ø75×32 mm |
| Track Width (Front/Rear) | 747 / 870 mm | 747 / 870 mm | 747 / 870 mm |
| Lift Height | 1015 mm | 1415 mm | 1650 mm |
| Lowered Height | 90 mm | 90 mm | 90 mm |
| Extended Mast Height | 2400 mm | 2800 mm | 3050 mm |
| Overall Height (H1) | 1780 mm | 2030 mm | 2230 mm |
| Overall Length | 1735 mm | 1735 mm | 1735 mm |
| Overall Width | 800 mm | 800 mm | 800 mm |
| Fork Dimensions (L×W) | 790×120 mm | 790×120 mm | 790×120 mm |
| Turning Radius | 1380 mm | 1380 mm | 1380 mm |
| Drive Speed (Laden/Unladen) | 4.0 / 4.5 km/h | 4.0 / 4.5 km/h | 4.0 / 4.5 km/h |
| Lift Speed (Laden/Unladen) | 0.07 / 0.09 m/s | 0.07 / 0.09 m/s | 0.07 / 0.09 m/s |
| Motor (Drive / Lift) | 0.75 kW / 2.2 kW | 0.75 kW / 2.2 kW | 0.75 kW / 2.2 kW |
| Battery Voltage / Capacity | 48V / 25Ah | 48V / 30Ah | 48V / 30Ah |
| Sound Level | ≤70 dB(A) | ≤70 dB(A) | ≤70 dB(A) |
