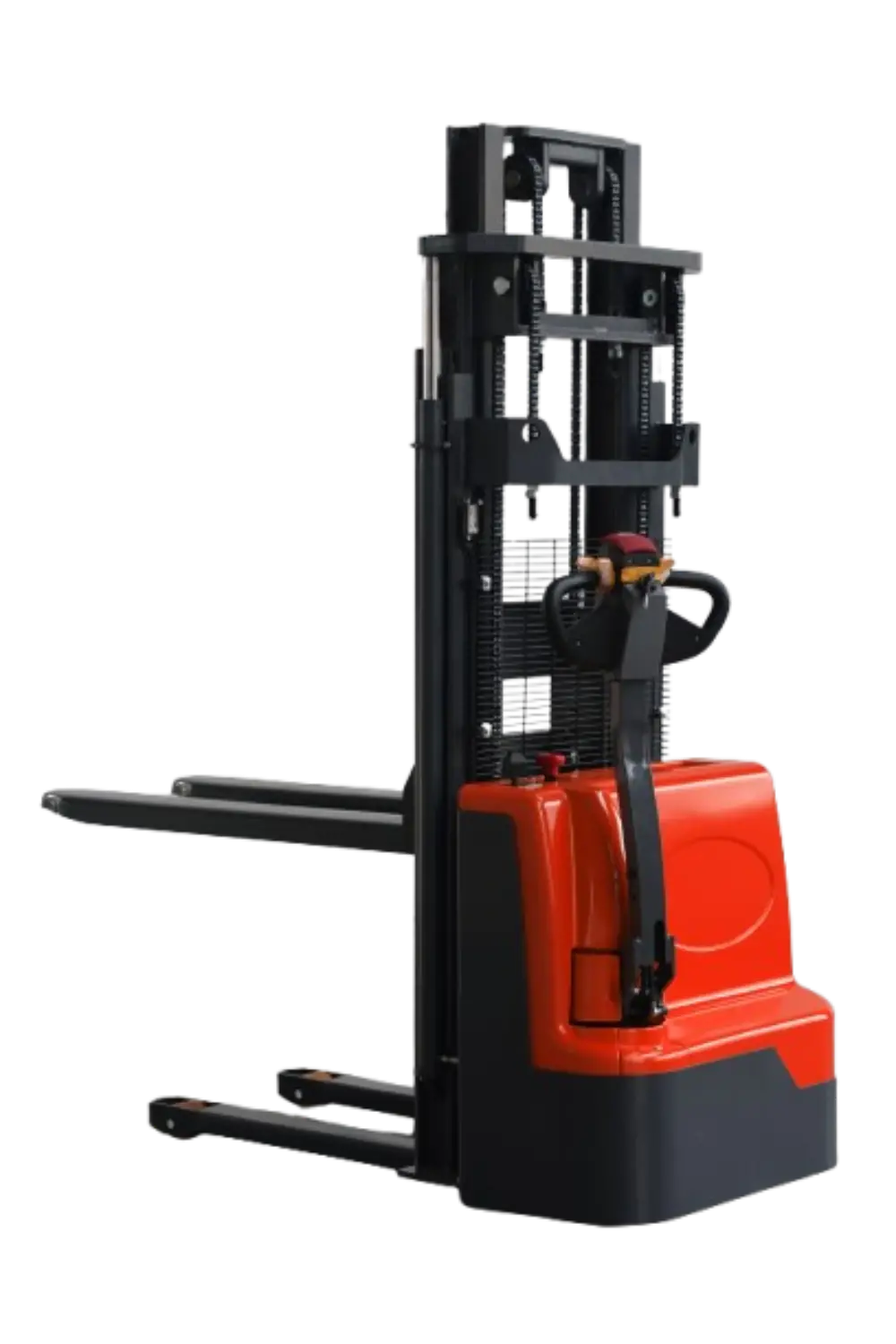

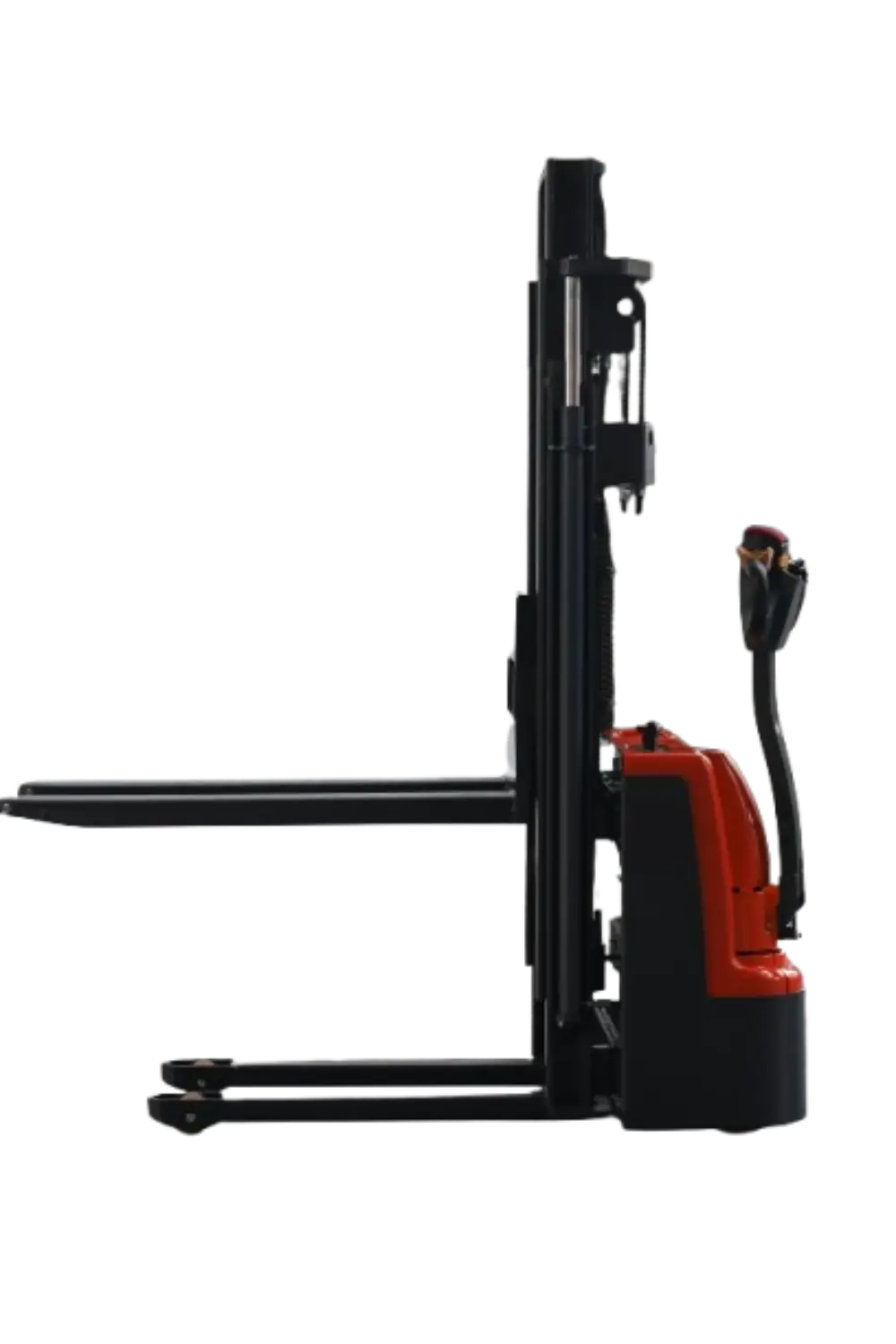

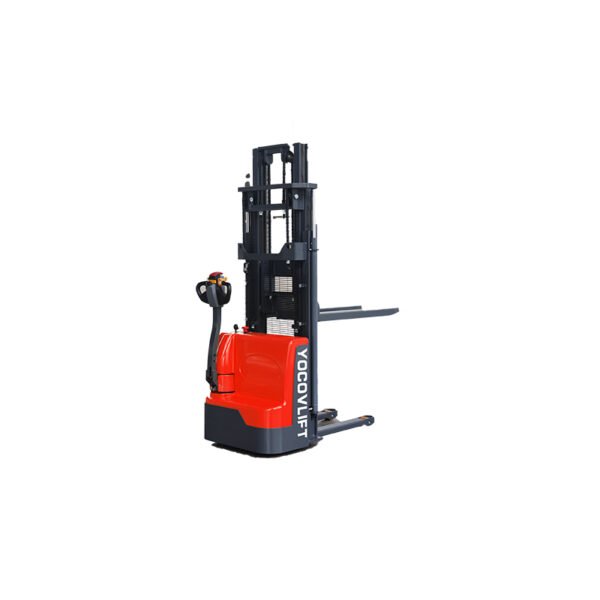

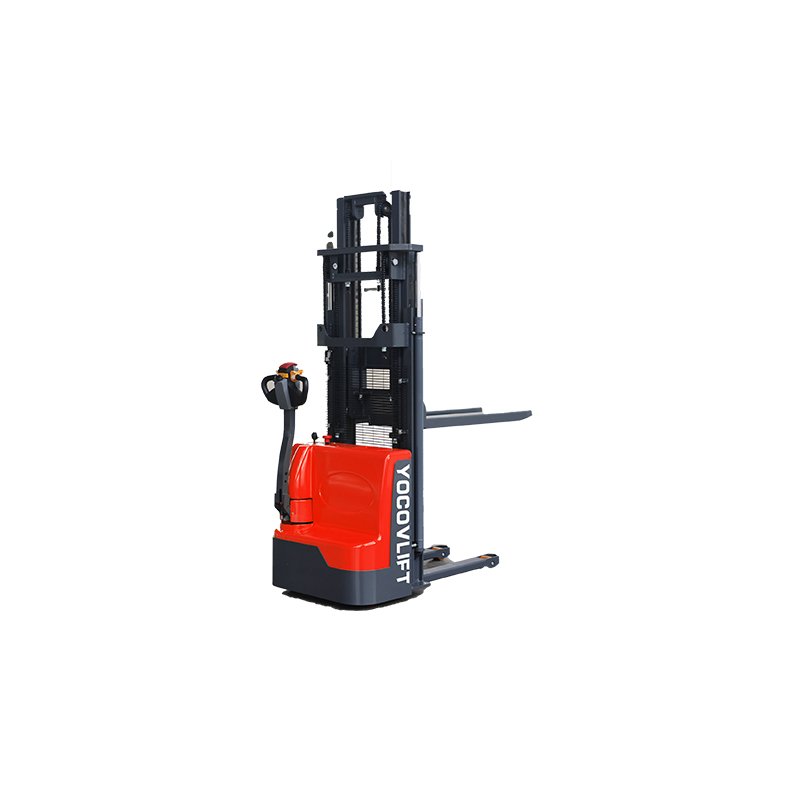

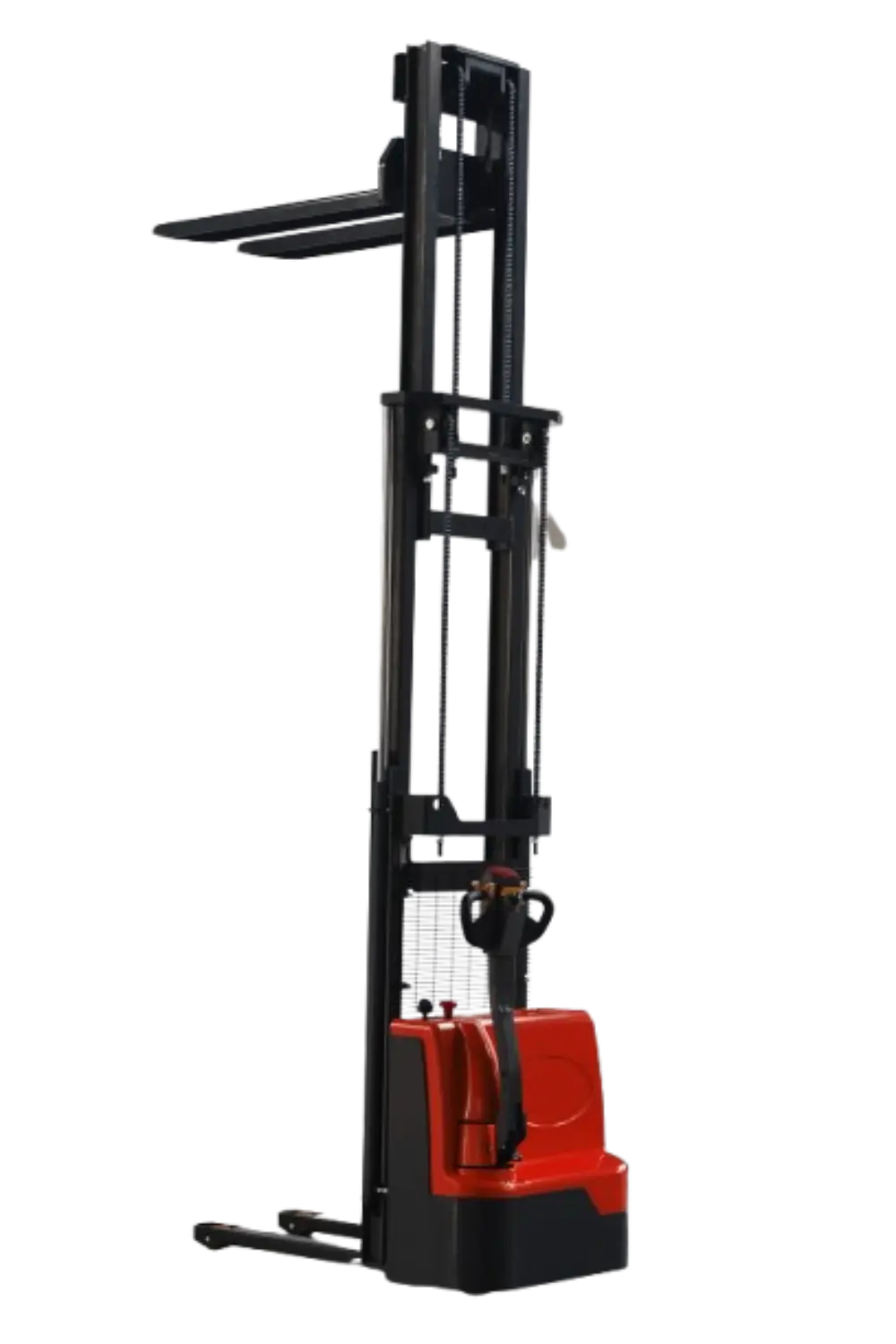

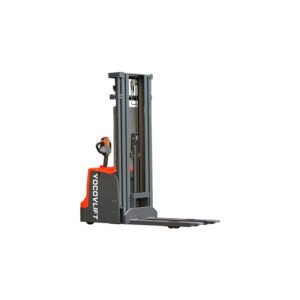

Electric Stacker QES15B

Additional information

Product Model	QES15B
Load Capacity	1500KG
Lift Height	1600~3500mm
Battery	Lead Acid Battery, Lithum Battery

Powered by lithium battery with optional lead-acid variant for flexibility in energy supply
Equipped with a proportional valve for smoother and more precise lifting and lowering control
Full electric operation with mechanical tiller steering for ergonomic and safe handling
CAN-BUS intelligent control system monitors the stacker status and fault diagnostics in real time
Durable mast design with precision steel side guide ensures stability and low friction
Reinforced solid metal legs provide greater load-bearing strength and long-term performance
Emergency reverse, turtle speed, and two-speed upright walking mode enhance safety and efficiency
Designed for narrow aisle operations, small turning radius and adjustable fork dimensions

Model	QES15B
Load Capacity (kg)	1500
Load Center (mm)	600
Operation Type	Electric
Wheelbase (mm)	1260
Service Weight (kg)	620
Drive Motor Rating (S2 – 60min) (kW)	0.75
Lift Motor Rating (S3 – 4.5%) (kW)	2.2
Battery Voltage / Capacity (V/Ah)	24/80 (Lithium)
Battery Weight ±5% (kg)	40
Lift Height (mm)	3410
Extended Mast Height (mm)	3990
Lowered Mast Height (mm)	1675
Height of Tiller (Min./Max.) (mm)	–
Overall Length (mm)	1780
Length to Face of Forks (mm)	630
Overall Width (mm)	850
Fork Dimensions (mm)	55/160/1070 (1150)
Ground Clearance (mm)	35
Turning Radius (mm)	1400
Min. Aisle Width (1000×1200) (mm)	2440
Min. Aisle Width (800×1200) (mm)	2388
Travel Speed (km/h)	4/4.5
Lift Speed (mm/s, laden/unladen)	0.09/0.1
Lowering Speed (mm/s, laden/unladen)	0.09/0.1
Max Gradeability (%)	3 / 7
Service Brake	Electromagnetic
Control Type	DC Speed Control
Noise Level (dB(A))	69
