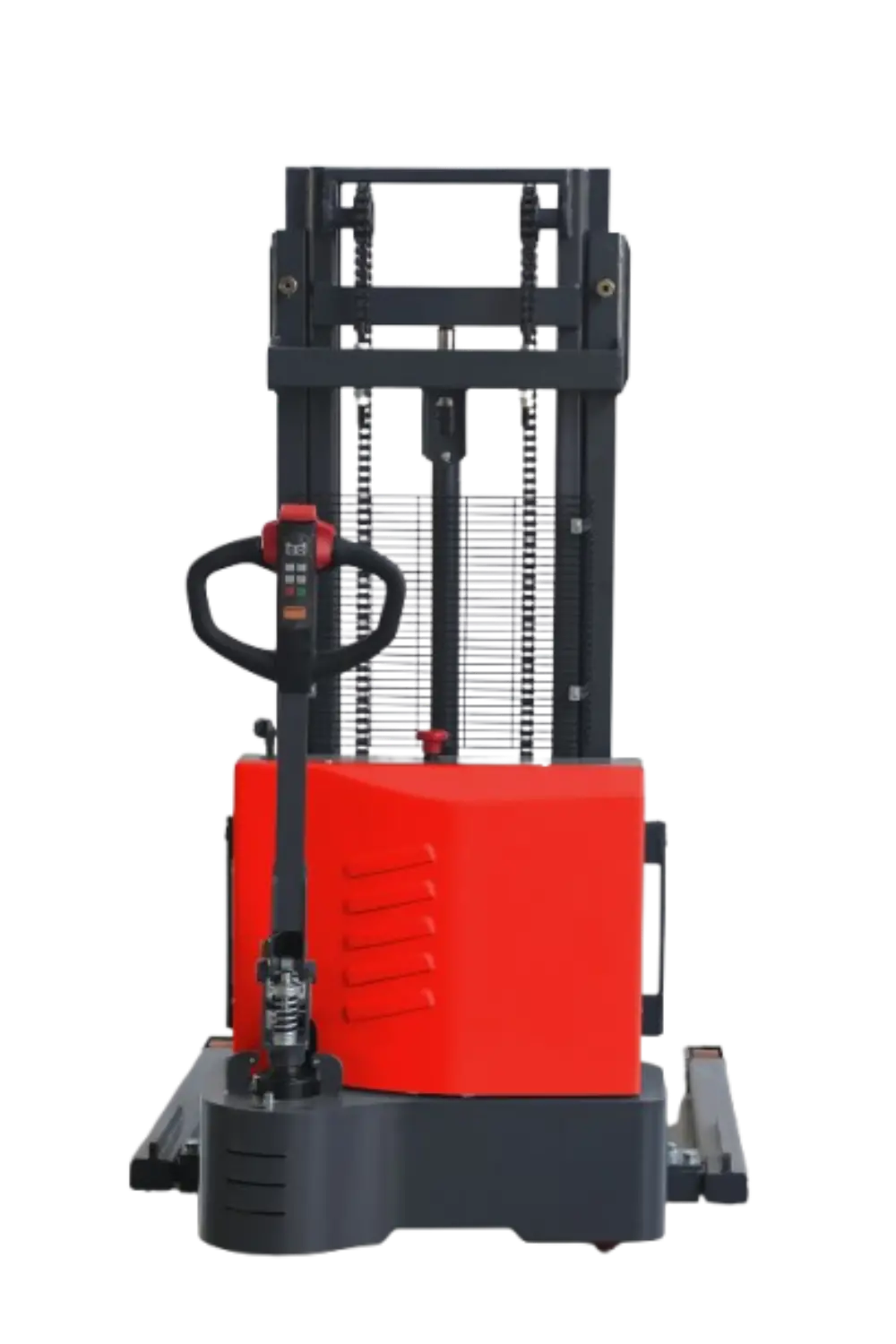

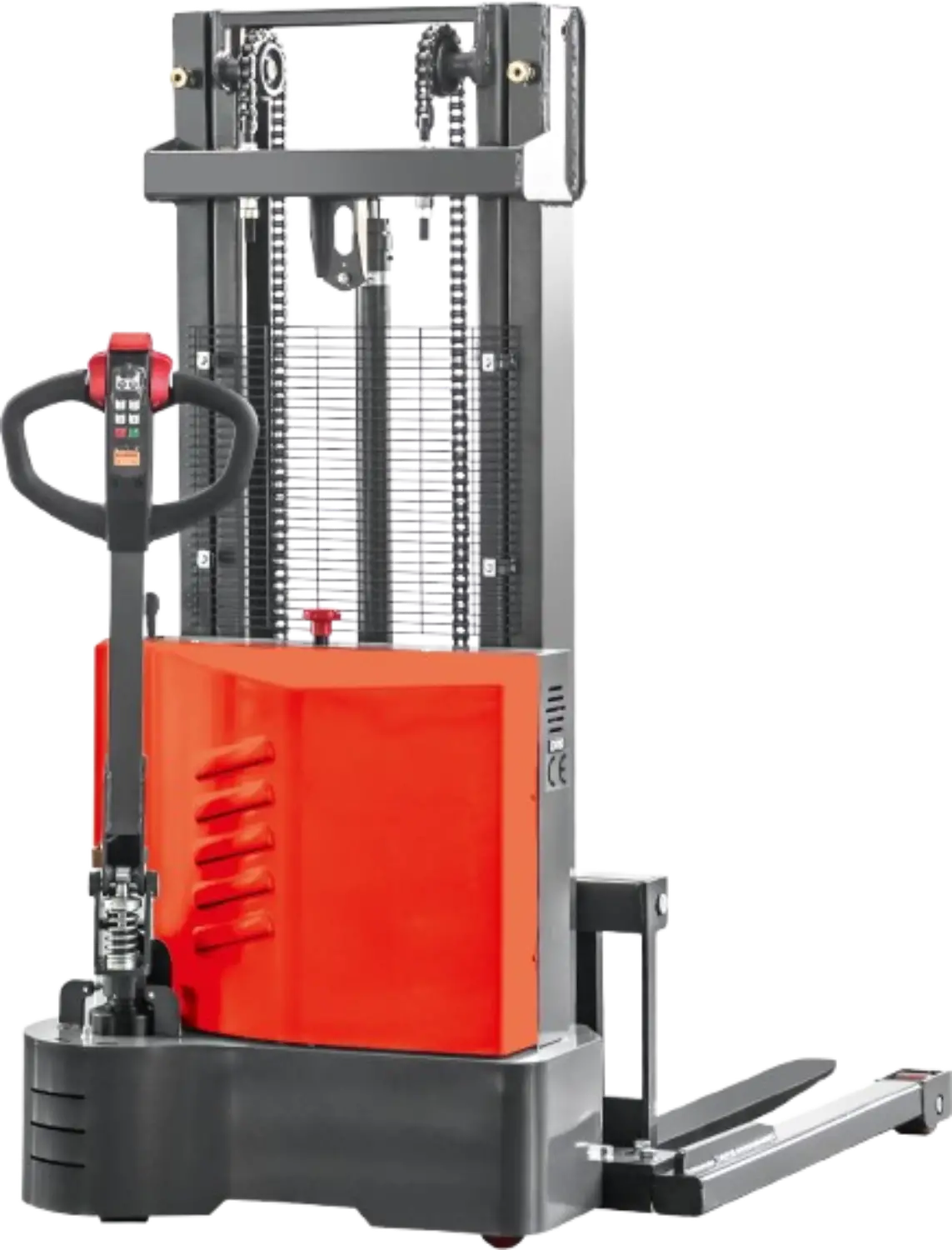

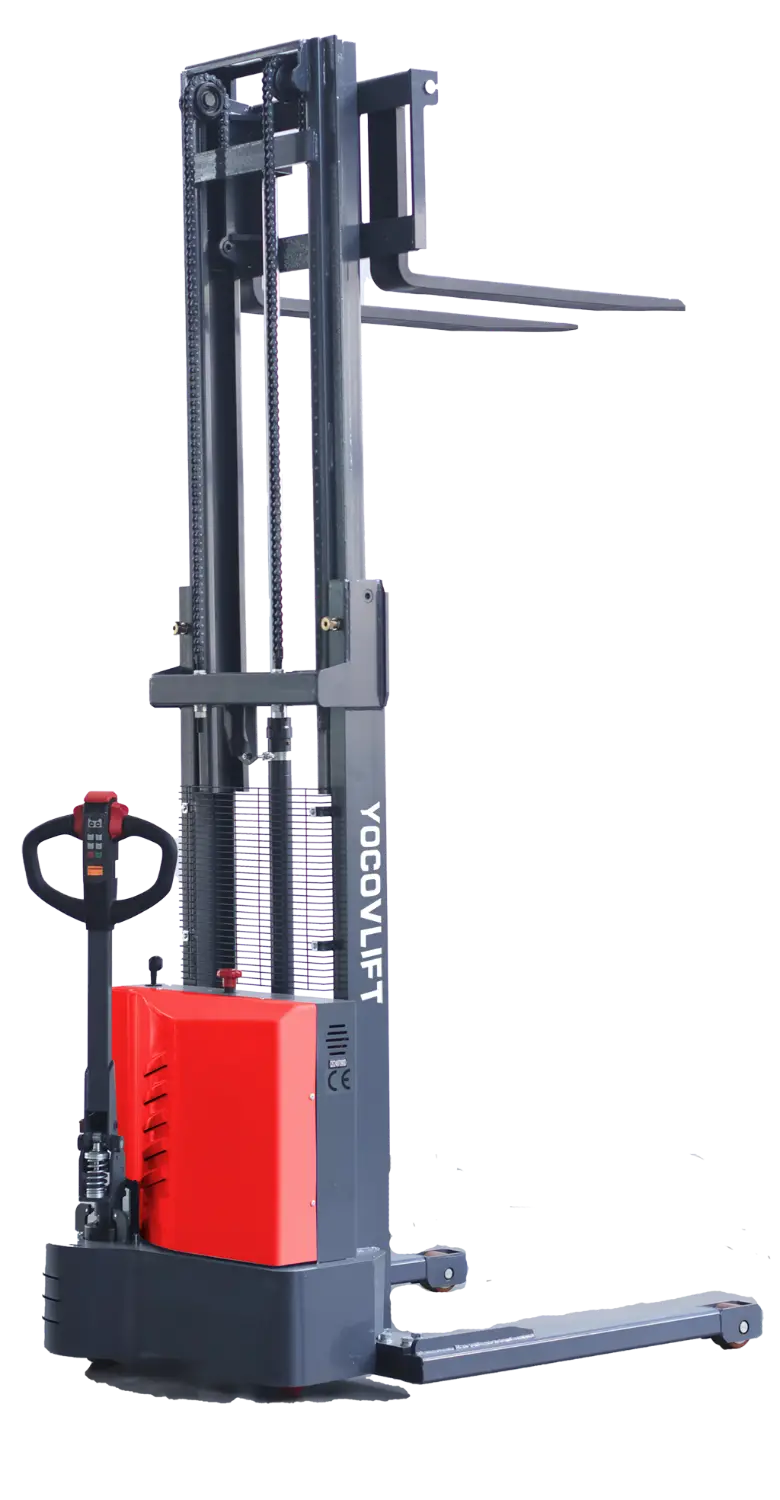

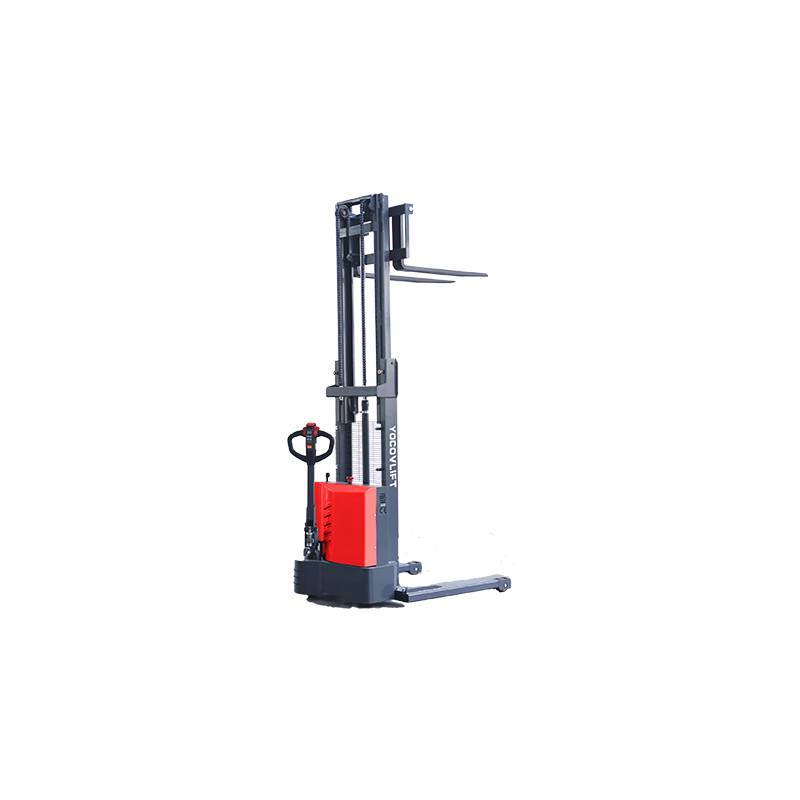

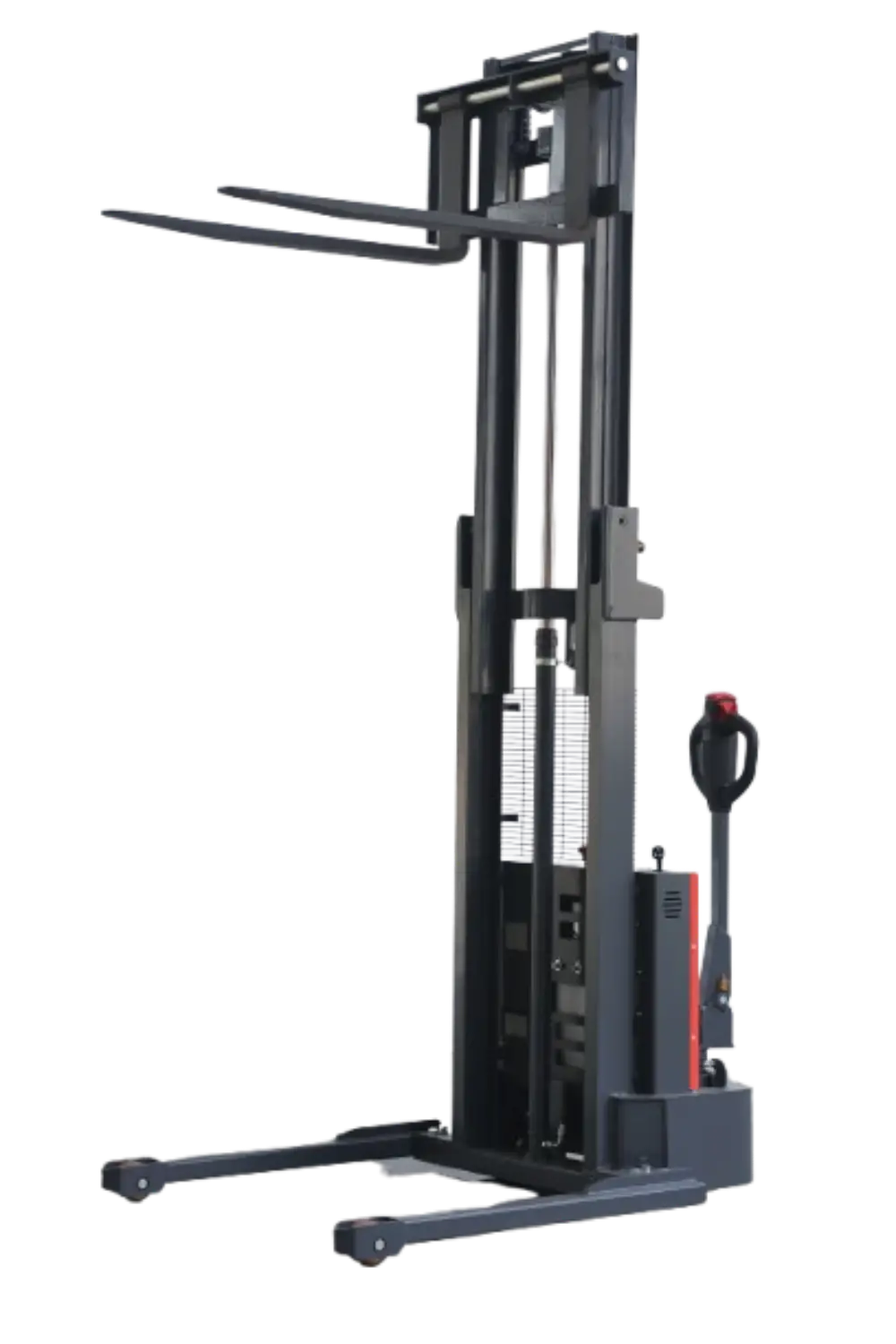

Light-duty electric walkie stacker with straddle legs
Ideal for compact and narrow workspace
Rated capacity: 1000–1200KG
Lifting height up to 3500mm
Suitable for material handling in small warehouses or production areas
| Product Model | QES10E-SL, QES12E-SL |
|---|---|
| Load Capacity | 1000KG, 1200KG |
| Lift Height | 1600~3500mm |
| Battery | Lead Acid Battery, Lithum Battery |
Compact structure with short turning radius, perfect for confined areas
Straddle leg design supports better stability and adjustable width
Ergonomic long handle with multiple function controls for ease of operation
Equipped with emergency reverse, turtle speed, and CAN-BUS control system
Enhanced hydraulic cylinder and solid steel mast ensure lifting reliability
Variety of battery capacities for different shift lengths
Complies with EN standards for safety and quality assurance
| Model | QES10E-SL | QES12E-SL |
|---|---|---|
| Load Capacity (kg) | 1000 | 1200 |
| Load Center (mm) | 600 | 600 |
| Wheelbase (mm) | 1231 | 1231 |
| Operation Type | Electric Pedestrian | Electric Pedestrian |
| Fork Height Lowered h1 (mm) | 1530 | 1530 |
| Max Lift Height h3 (mm) | 1910 | 2410 |
| Height of Mast Extended h4 (mm) | 2490 | 2990 |
| Height of Tiller Min/Max (mm) | 780/1280 | 780/1280 |
| Overall Length L (mm) | 1790 | 1790 |
| Length to Fork Face (mm) | 590 | 590 |
| Overall Width B1 (mm) | 790 | 790 |
| Fork Dimensions (mm) | 30×100×1070 | 30×100×1070 |
| Distance Between Fork Arms (mm) | 210–800 | 210–800 |
| Ground Clearance (mm) | 40 | 40 |
| Aisle Width for Pallets 1000×1200 Crossways (mm) | 2288 | 2288 |
| Aisle Width for Pallets 800×1200 Lengthways (mm) | 2290 | 2290 |
| Turning Radius (mm) | 1440 | 1440 |
| Travel Speed (km/h) | 4.2 | 4.2 |
| Lifting Speed (m/s, no load) | 0.08 | 0.08 |
| Lowering Speed (m/s, no load) | 0.12 | 0.12 |
| Max. Gradeability (laden/unladen) | 5% | 5% |
| Brake Type | Electromagnetic | Electromagnetic |
| Drive Motor Power (kW) | 0.75 | 0.75 |
| Lift Motor Power (kW) | 2.2 | 2.2 |
| Battery Type | 24V/100Ah | 24V/150Ah |
| Battery Weight ±5% (kg) | 22.5 | 32 |
| Sound Level (dB) | ≤69 | ≤69 |
