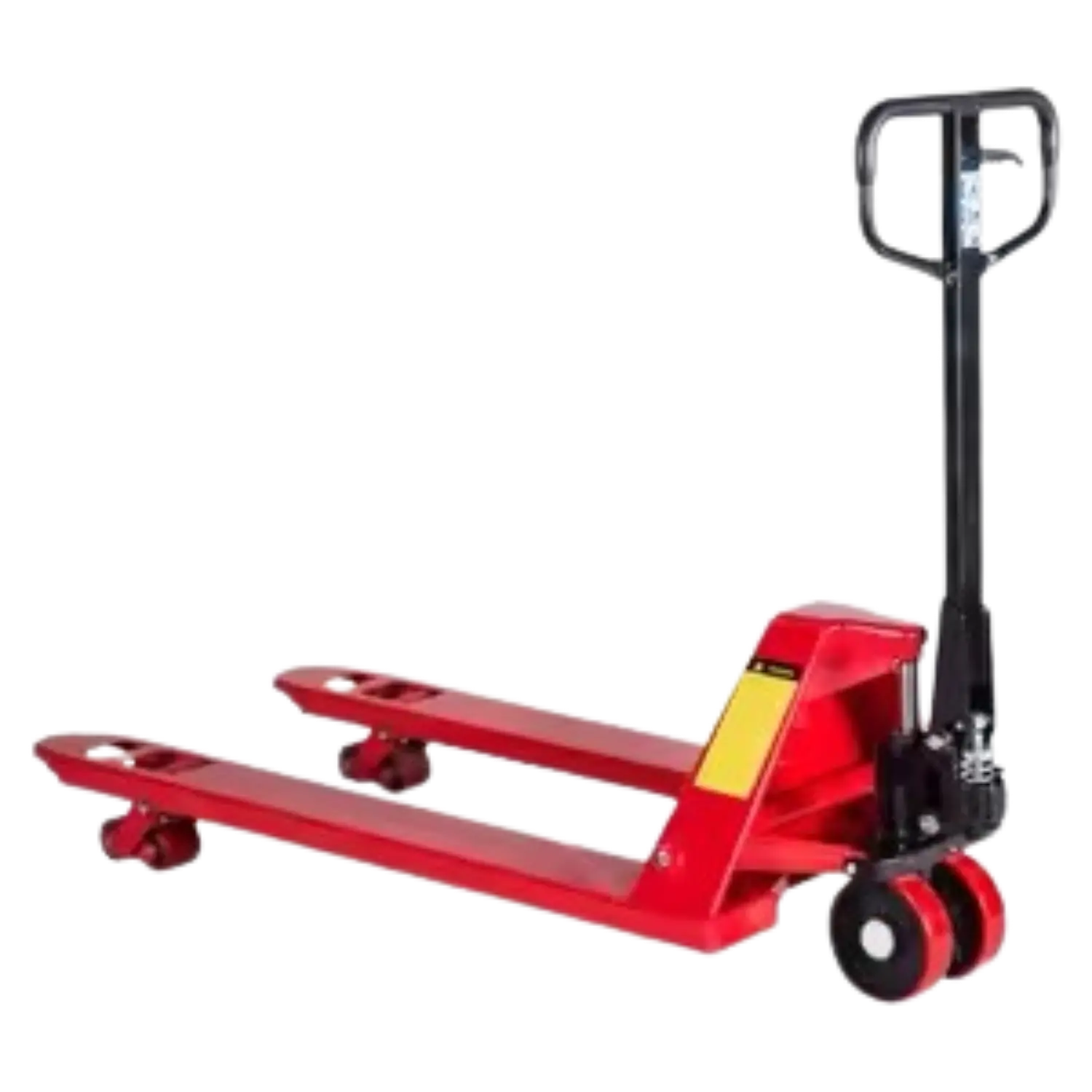

Hand Pallet Truck BF25

Hand_Pallet_Truck_BF25.BF30_Model_in_Yocov_Factory_details_Photo-2

Excellent whole casting hydraulic pump，robust and durable，with fine control of lowering speed and overload valve，low routine maintenance

Additional information

Product Model	BF25, BF30
Load Capacity	2500KG, 3000KG
Lift Height	200mm

Product Details:

Excellent whole casting hydraulic pump，robust and durable，with fine control of lowering speed and overload valve，low routine maintenance

Ergonomically designed handle with cmfortable rubber grip allows the optimized safety aswell as comfortable，three position operational handle lever for lifting，transportion and lowering purposes
Lower Position–to lower load，pull up on the finger tip control
Neutral Position–to place finger tip control in this position during pulling the truck or load
Lift Position–to raise load，push down on finger tip control，pump handle to raise the load

Single and Tandem load roller for Option
Additional entry and exit fork rollers guarantees for maximum stability and safety for transporting goods on slopes

Handle Option

Wheel Option

Option of different coating material for both steering wheel and fork rollers Polyurethane Ideal for delicate floors with hard wearing and non-making property,quiet and durable

Nylon

Low drag efforts,high resistance to chemicals,non-making,preferred in food,fishing and chemical industries with smooth level floors

Rubber

Best Choice for quiet and durable demands,ideal for smooth and rough floors

Hand pallet truck 1kg=2.2lb 1inch=25.4mm

Type/ITEM		QD20	BF25	BF30
Pump		DB	BF	BF
Capacity	kg	2000	2500	3000
Height of fork	mm	75-190	85-200	85-200
Width of the fork	mm	550/685	550/685	550/685
Length of the fork	mm	1000/1150/1220	1000/1150/1220	1000/1150/1220
Size of Steer wheel	mm	160	180	180
Size of load roller	mm	Φ70X60	Φ80×70	Φ80×70
Material of the wheel		Nylon / PU	Nylon / PU	Nylon / PU
Pump time to the top	times	≤13	≤13	≤13
N.W.	kg	53-57	61-69	65-70
Packing	pcs/pallet	6	6	6
Packing size	mm	570X760X2300 700X760X2300	570X760X2300 700X760X2300	570X760X2300 700X760X2300
