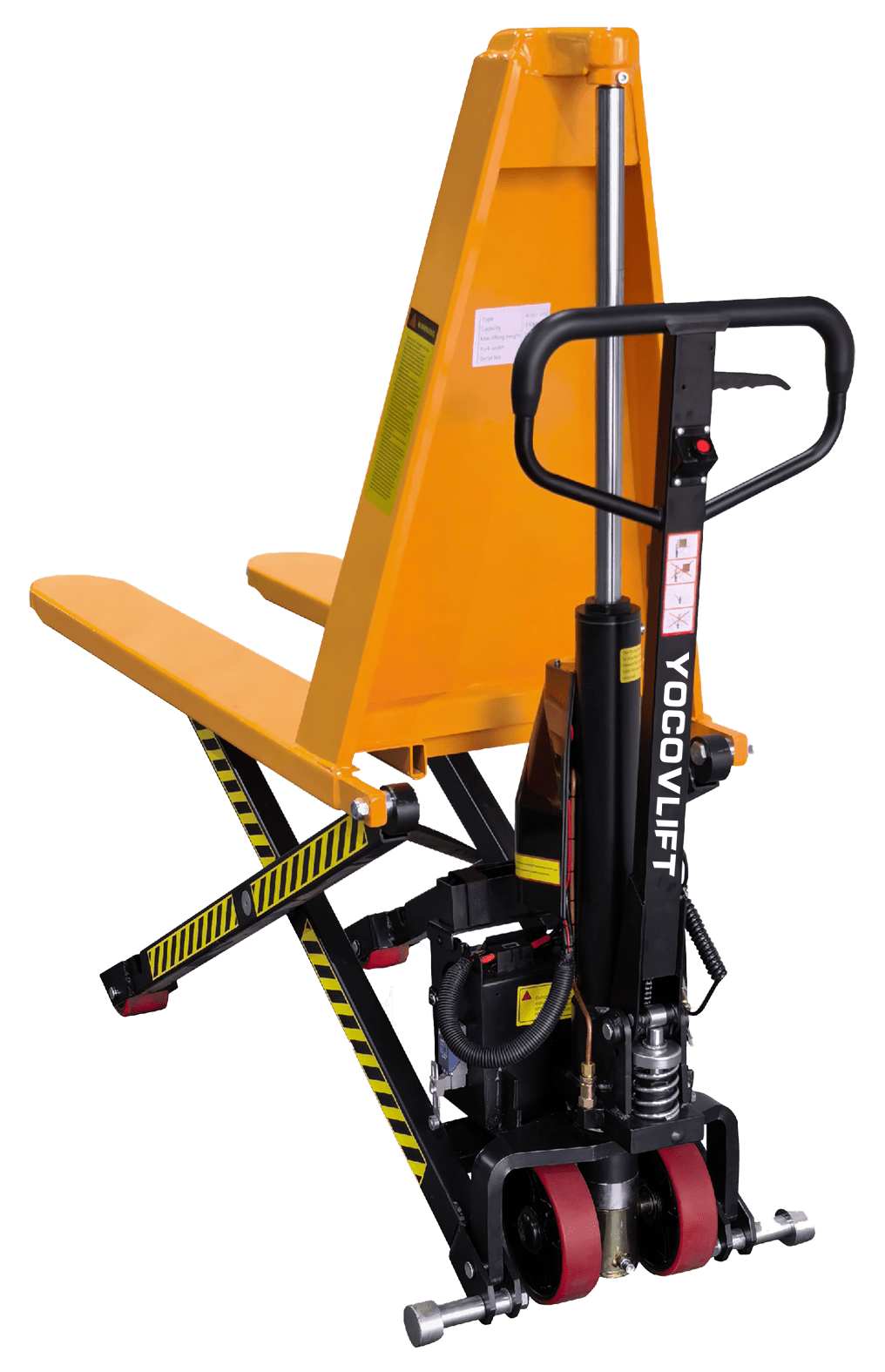

1500kg capacity hand-operated high lift pallet truck
Integrated hydraulic lifting system, ideal for mid-height pallet transfer
Suitable for tight spaces, warehouses, workshops
Durable scissor-lift design ensures stable and ergonomic handling
Cost-effective alternative to electric high-lift trucks
| Product Model | HLT15SED |
|---|---|
| Load Capacity | 1500KG |
| Lift Height | 800mm |
| Battery | Lead Acid Battery |
Manual hydraulic lifting system offers smooth and reliable pallet elevation
Sturdy high-strength steel structure with reinforced scissors for stable lifting
Compact body width fits narrow aisles and confined warehouse environments
Equipped with dual front rollers and heavy-duty PU wheels for smooth maneuverability
Ergonomic handle provides comfortable control for lifting, lowering, and transport
Maintenance-free battery used only for indicator or optional features
Ideal for loading docks, production lines, printing workshops, and light manufacturing
| Item | Unit | HLT15SED (Manual-Electric Type) |
|---|---|---|
| Rated Load Capacity | kg | 1500 |
| Min. Fork Height | mm (H1) | 85 |
| Max. Fork Height After Lifting | mm (H) | 800 |
| Max. Lifting Height | mm | ≥715 |
| Fork Outside Width | mm (W) | 540 / 680 |
| Fork Inside Width | mm (W1) | 220 / 360 |
| Fork Dimensions | mm (L1) | 1150 |
| Single Fork Width | mm (B) | 160 |
| Fork Thickness | mm (s) | 50 |
| Overall Length | mm (L) | 1750 |
| Overall Height | mm (H2) | 1260 |
| Load Roller Dimensions | mm | Ø80 × 70 |
| Steering Wheel Dimensions | mm | Ø150 × 50 |
| Turning Radius | mm | 1540 |
| Power Source (Optional Display) | V / kW | 12V / 0.8 (if equipped) |
| Wheel Material | — | PU / Nylon |
| Battery (Indicator Only) | V / AH | 12 / 65 |
| Net Weight | kg | 148 / 153 |
| Gross Weight (4 units / Pallet) | kg | 600 / 624 |
| Packing Size | mm | 680 × 1150: 2200 × 700 × 1200 |
