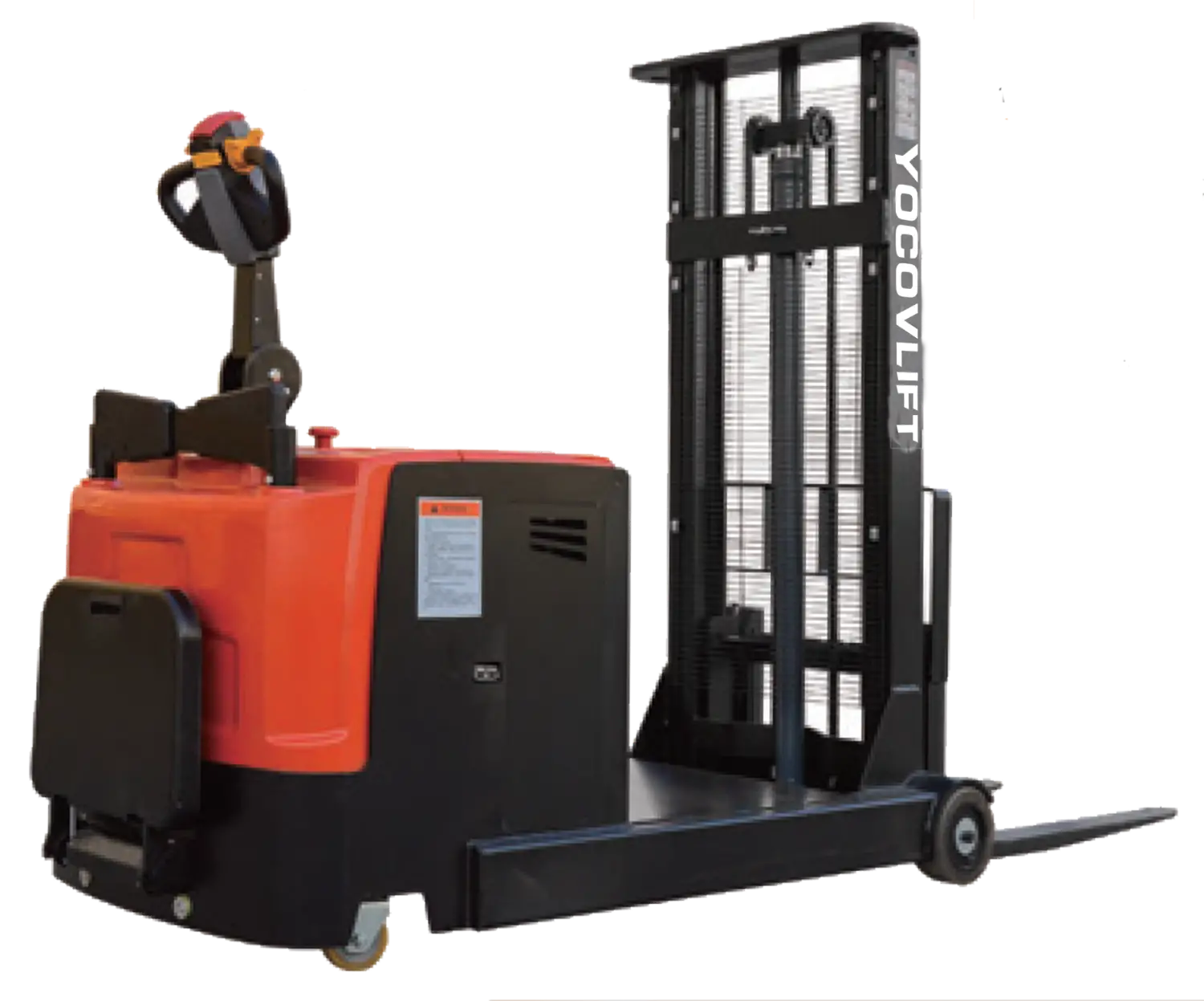

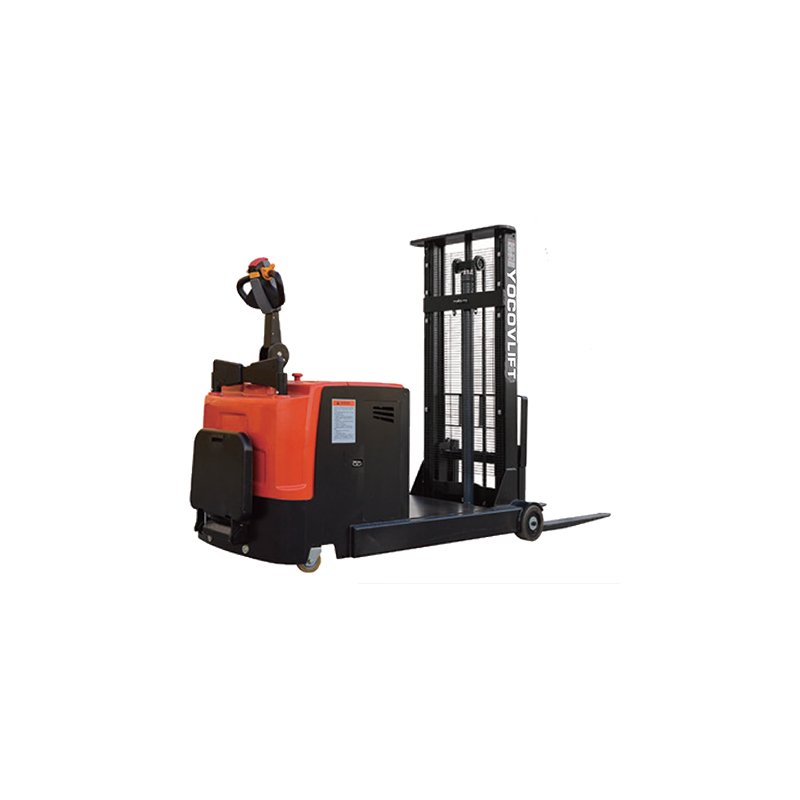

Rider-Control Electric Counterbalance Stacker CPDB15

YOCOV CPD15/CPD20 is a heavy-duty electric counterbalance stacker with a load capacity of 1500kg or 2000kg.

It features multiple lifting height options and is ideal for narrow aisles, workshops, and container applications.

Additional information

Product Model	CPDB15, CPDB20
Load Capacity	1500KG, 2000KG
Lift Height	3000~4500mm
Battery	Lead Acid Battery, Lithum Battery

Compact structure with short chassis, ideal for tight working spaces and container handling.
Rated load capacity options of 1500kg and 2000kg.
Lifting height options: 1600mm / 2000mm / 2500mm / 3000mm / 3500mm.
Reliable hydraulic system and robust frame structure ensure safety and durability.
Equipped with AC drive motor for efficient, smooth, and low-noise operation.
Integrated tiller handle with multifunctional buttons for ease of control.
Multiple battery capacities available to meet different operating times.
Maintenance-free battery options and easy-access compartment for simple servicing.
Ideal for warehousing, light manufacturing, and logistics environments.

Item	Unit	CPD15	CPD20
Load Capacity	kg	1500	2000
Operation Type	–	Pedestrian	Pedestrian
Power Type	–	Electric	Electric
Load Center	mm	600	600
Wheelbase	mm	1181	1225
Drive Motor	–	AC	AC
Tyre Type	–	PU	PU
Front Wheel Size	mm	Ø230×75	Ø230×75
Rear Wheel Size	mm	Ø210×75	Ø210×75
Additional Wheel	mm	Ø115×55	Ø115×55
Mast Lowered Height (h1)	mm	2064 / 1864 / 1914 / 2064 / 2241	2064 / 1864 / 1914 / 2064 / 2241
Mast Extended Height (h4)	mm	2324 / 2064 / 2334 / 2664 / 3064	2324 / 2064 / 2334 / 2664 / 3064
Fork Height (Lowered) (h13)	mm	90	90
Overall Height (with tiller arm) (h14)	mm	1040 / 1815	1040 / 1815
Overall Width (b1)	mm	850	850
Fork Dimensions (L×W×T)	mm	1070×100×40	1070×100×40
Adjustable Fork Width	mm	210–680	210–680
Turning Radius	mm	1867	1867
Travel Speed (Laden/Unladen)	km/h	5.6 / 6	5.6 / 6
Lifting Speed (Laden/Unladen)	mm/s	100 / 115	75 / 125
Lowering Speed (Laden/Unladen)	mm/s	100 / 110	95 / 100
Max. Gradeability (Laden/Unladen)	%	5 / 8	5 / 8
Drive Motor Power	kW	2.2	2.2
Lift Motor Power	kW	2.2	2.2
Battery Voltage / Capacity	V/Ah	24/210	24/210
Battery Weight	kg	180	180
Noise Level	dB(A)	≤70	≤70
