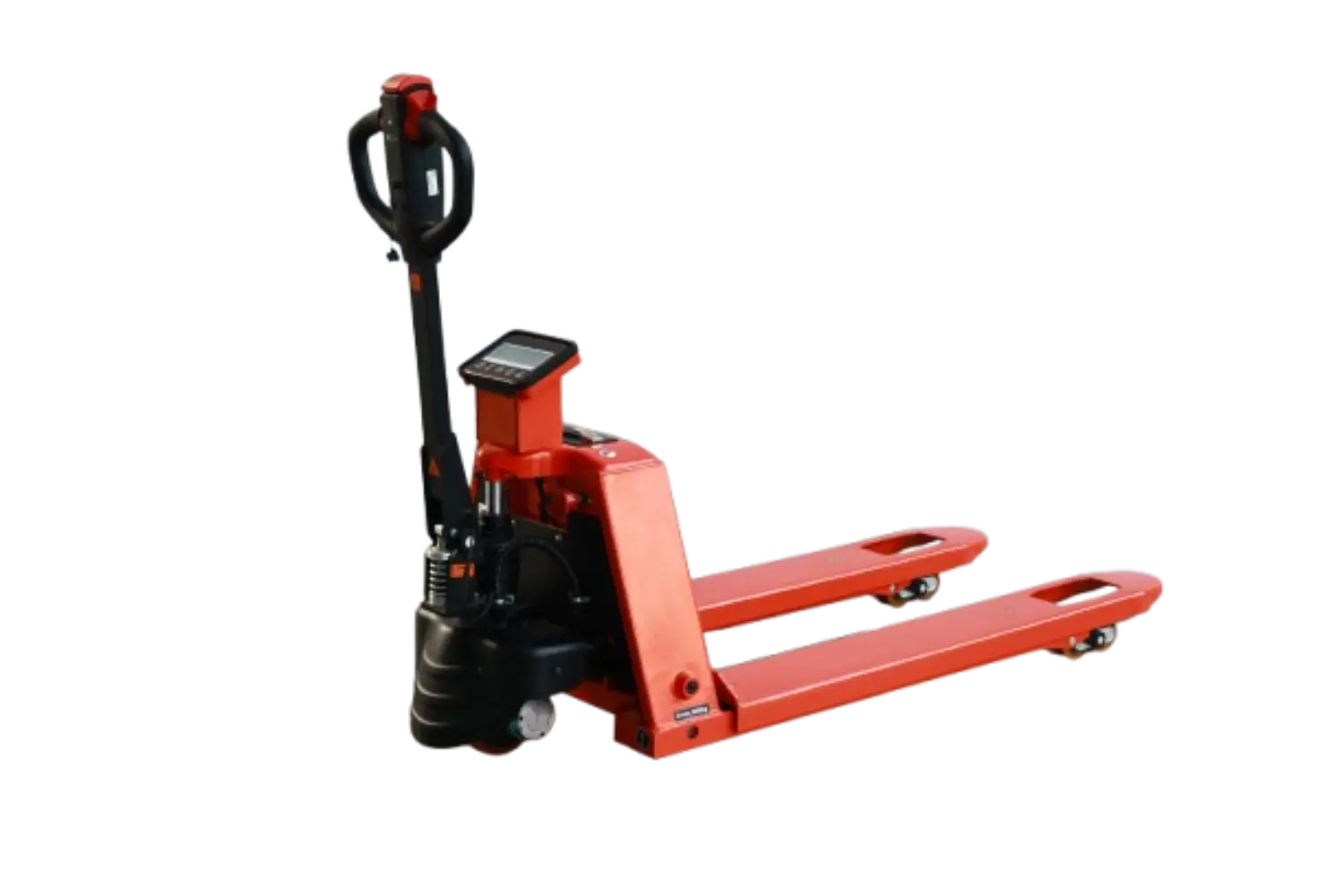

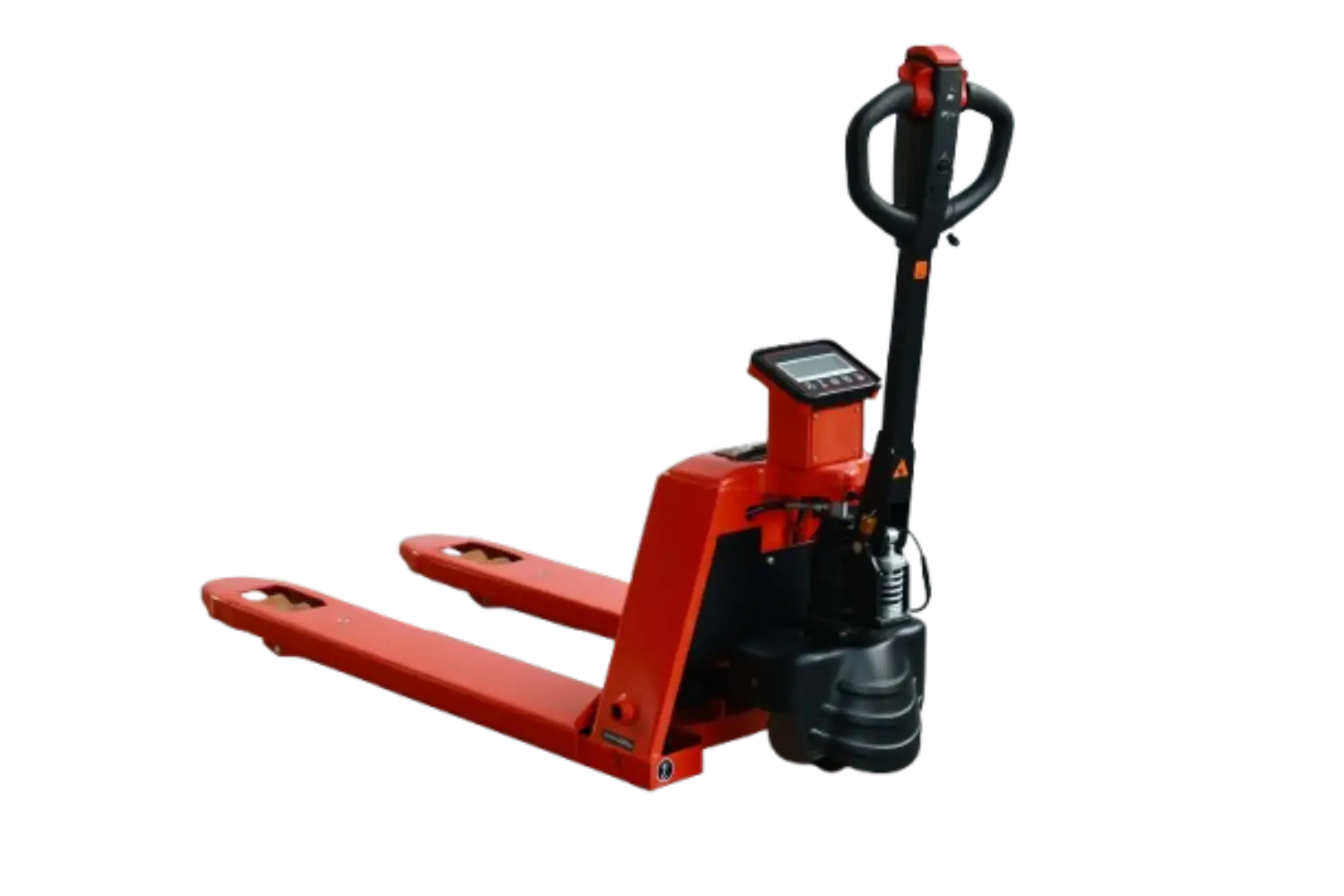

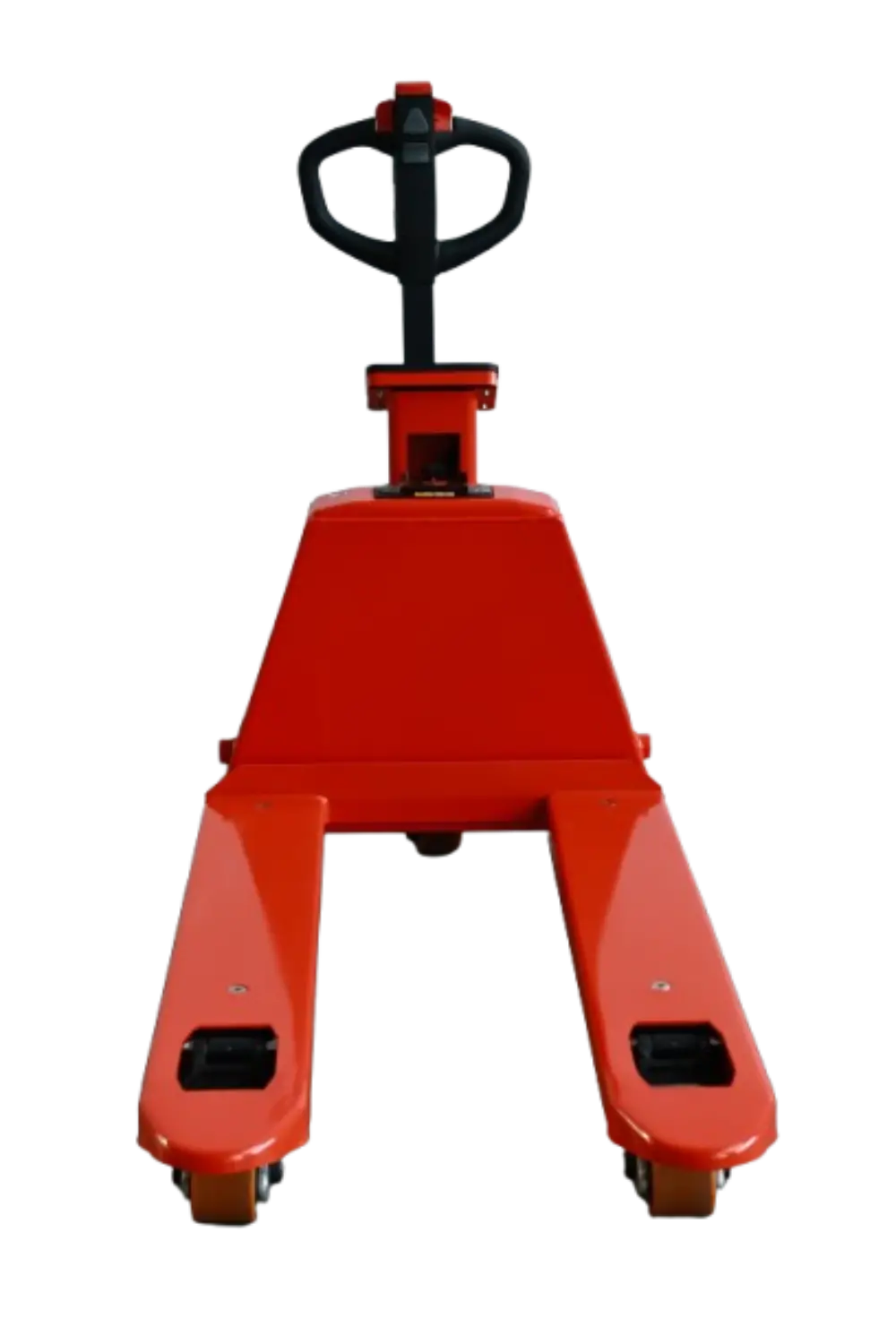

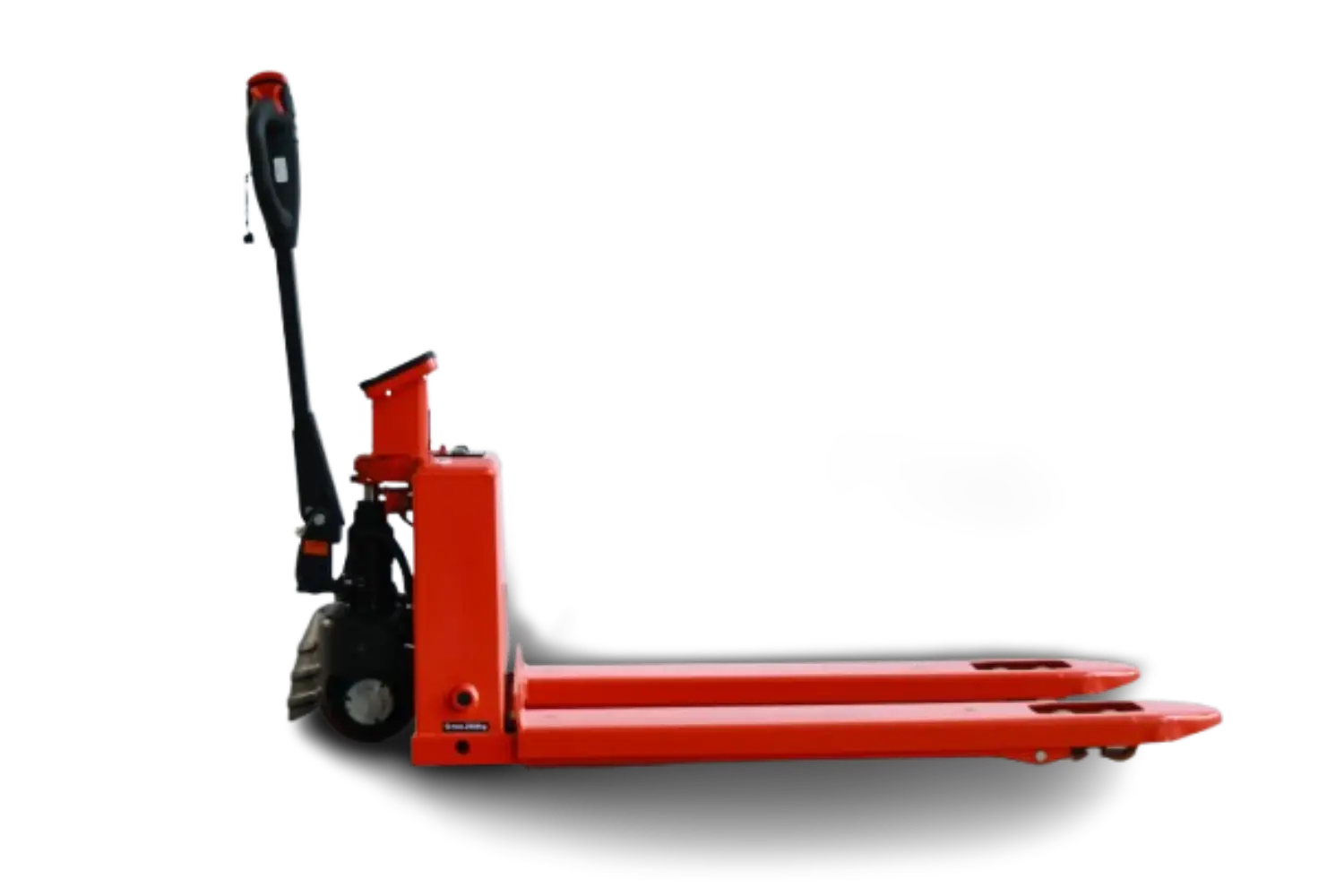

Scale Electric Pallet Truck EPT20ES

Additional information

Integrated weighing system with 4 press sensor cells for accurate ±0.1% real-time weighing.
Lithium battery powered for fast charging, lightweight operation, and low maintenance.
Ergonomic handle with full control features: turtle speed, emergency reverse, and magnetic key.
Reinforced 3mm steel motor cover ensures durability during heavy-duty operations.
PU tandem wheels enhance driving stability and reduce vibration during transport.
Replaceable battery design allows quick swaps and uninterrupted working.

Perfect for applications requiring frequent weighing and movement, such as food distribution, logistics, and warehouse shipping areas.

Item	Unit	EPT20ES
Power Source	—	Lithium Battery
Operator Type	—	Pedestrian
Rated Load Capacity	Q (t)	2.0
Load Center Distance	c (mm)	600
Load Distance (Axle to Fork Center)	x (mm)	910
Wheelbase	y (mm)	1220
Service Weight	kg	132
Tire Type	—	Polyester iron core
Front Tire Size	Ø × w (mm)	Ø190 × 70
Rear Tire Size	Ø × w (mm)	Ø80 × 70
Additional Wheels	—	1 × 4
Front Tread	b10 (mm)	390 / 510
Lift Height	h3 (mm)	110
Tiller Height (Min / Max)	h14 (mm)	600 / 1220
Lowered Height	h13 (mm)	75 / 85
Overall Length	l1 (mm)	1590
Length to Face of Forks	l2 (mm)	410
Overall Width	b1 (mm)	570 / 695
Fork Dimensions (W × L)	e × l (mm)	60 × 170 × 1150 / 1220
Distance Between Forks	mm	560 / 685
Ground Clearance	m2 (mm)	35
Turning Radius	Wa (mm)	1394
Travel Speed (Laden / Unladen)	km/h	4.2 / 4.5
Lift Speed (Laden / Unladen)	m/s	0.027 / 0.03
Lowering Speed (Laden / Unladen)	m/s	0.03 / 0.025
Gradeability (Laden / Unladen)	%	5 / 15
Service Brake	—	Electromagnetic
Drive Motor (S2 60min)	kW	0.85
Lift Motor Rating (S3 10%)	kW	0.75
Battery Standard	—	DIN 43531 / 35 / 36
Battery Voltage / Capacity	V / Ah	48V / 15
Battery Weight (Min)	kg	4.5
Energy Consumption per VDI Cycle	kWh/h	0.21
Drive Control Type	—	DC Speed Control
Sound Level at Operator’s Ear (EN12053)	dB(A)	≤67
