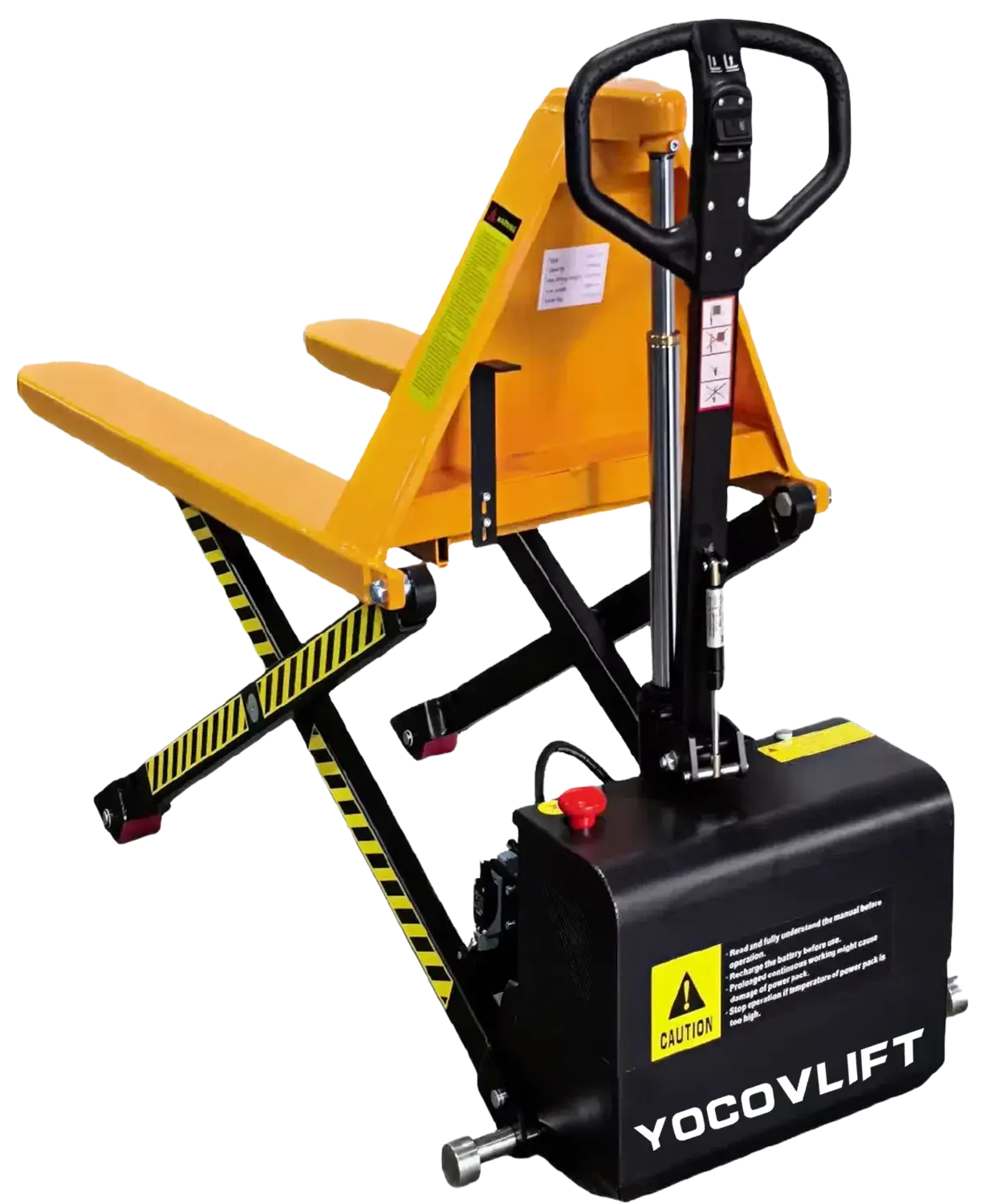

Semi Electric High Lift Truck HLT10SE

Additional information

Equipped with an electric lifting unit and manual push-pull design, suitable for high-lift pallet transfer
Features a strong scissor lift structure to ensure lifting stability and safety
The reinforced PU steering and load wheels offer excellent durability and maneuverability
Ergonomic handle and compact body make it easy to operate in tight spaces
Powered by a 12V/65AH maintenance-free battery system for reliable performance
Built for warehouses, workshops, and logistics centers that require frequent elevation of goods
Dual capacity options (1000kg / 1500kg) for various operational demands

Item	Unit	HLT10SE	HLT15SE
Rated Capacity	kg	1000	1500
Min. Fork Height	mm (H1)	85	85
Max. Fork Height After Lifting	mm (H)	800	800
Max. Lifting Height	mm	≥715	≥715
Fork Outer Width	mm (W)	540 / 680	540 / 680
Fork Inner Width	mm (W1)	220 / 360	220 / 360
Fork Dimensions (L × W × T)	mm (L1)	1150 × 160 × 50	1150 × 160 × 50
Overall Length	mm (L)	1750	1750
Overall Height	mm (H2)	1280	1280
Load Roller Dimensions	mm	Ø80 × 70	Ø80 × 70
Steering Wheel Dimensions	mm	Ø150 × 50	Ø150 × 50
Min. Turning Radius	mm	1540	1540
Power Unit	V / kW	12V / 1.2	12V / 1.2
Wheel Material	—	PU / Nylon	PU / Nylon
Battery Capacity	V / AH	12 / 65	12 / 65
Net Weight	kg	142 / 145	145 / 148
Gross Weight (4units /Pallet)	kg	288 / 294	294 / 300
Packing Dimensions	mm	540 × 1150: 2400 × 550 × 1300	680 × 1150 : 2400 × 700 × 1300
