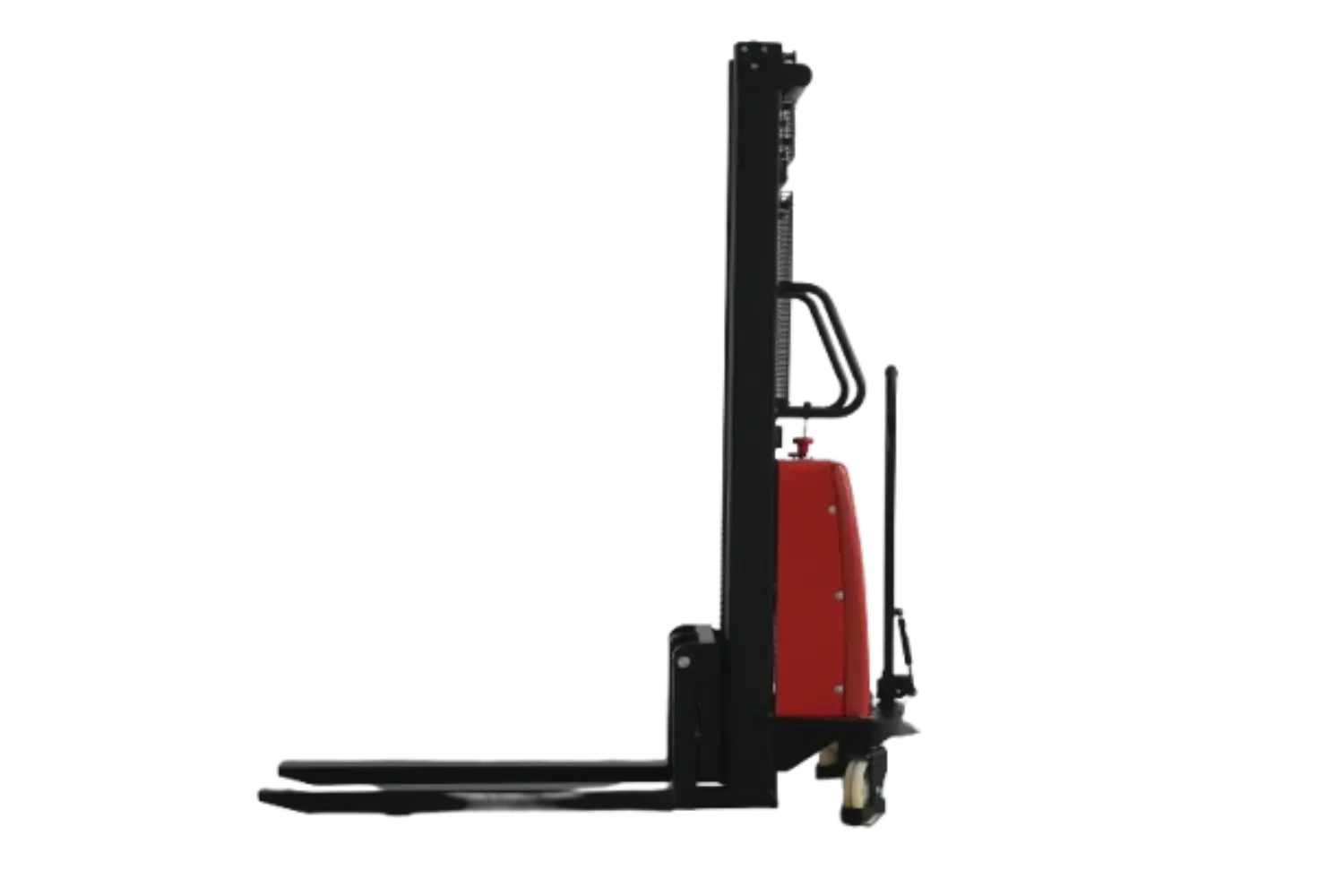

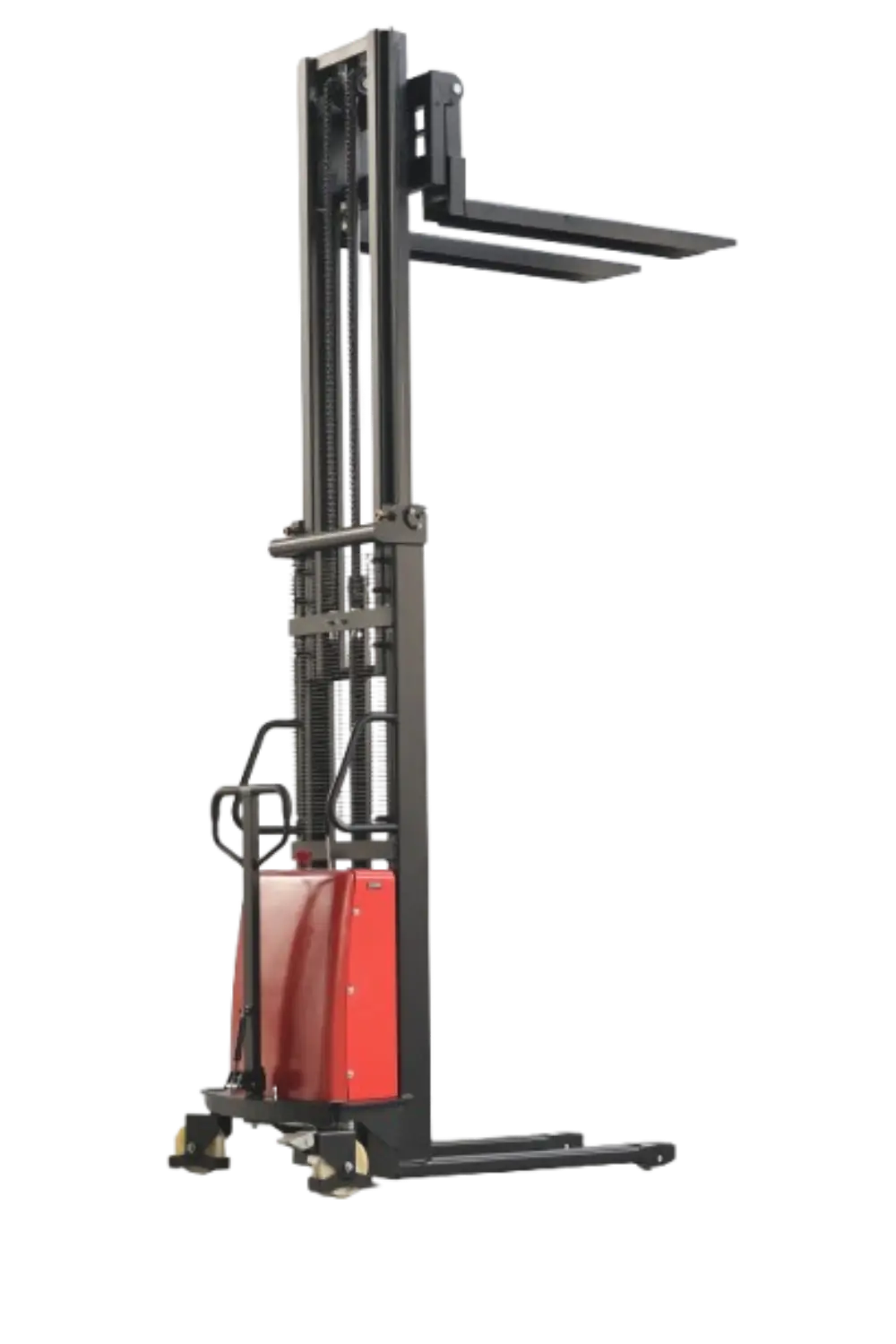

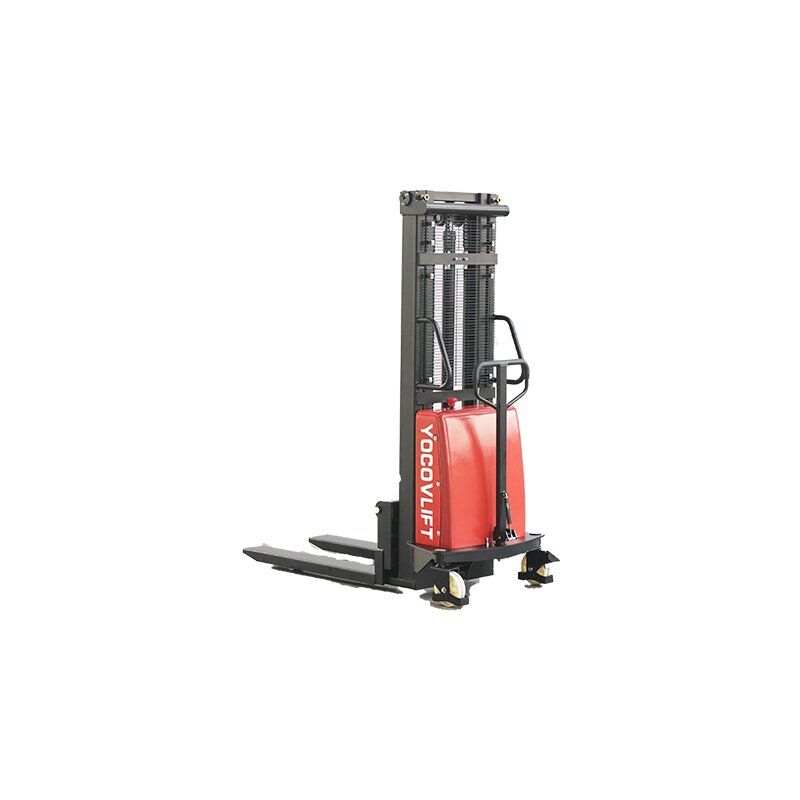

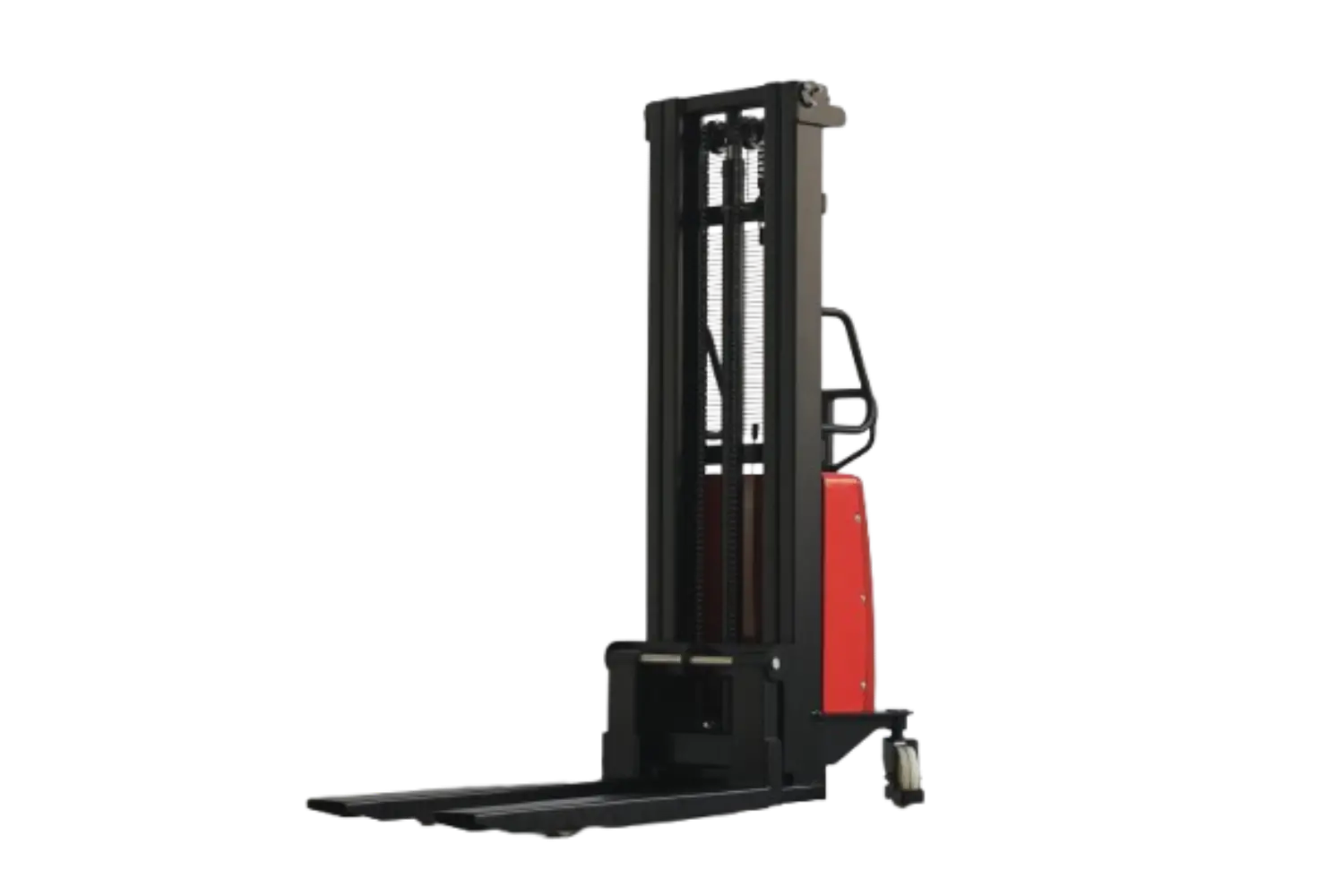

Semi-Electric Stacker SES10J

Additional information

Product Model	SES10J, SES15J, SES20J
Load Capacity	1000KG, 1500KG, 2000KG
Lift Height	1600~3500mm
Battery	Lithum Battery, Maintenance-Free Battery

Equipped with a powerful hydraulic pump system for stable lifting and precise height adjustment
Ergonomic handle and durable frame structure for smooth manual movement
Fork width and height can be customized to fit different pallets and loads
Mechanical foot brake system enhances operator control and parking safety
Reinforced mast system for long-term durability and structural strength
Suitable for loading and unloading, stacking, and cargo transfer within warehouse and production sites

Technical Specifications – YOCOV SES Semi-Electric Pallet Stacker

the vehicle stability is better;

Characteristics	Model		SES1016J	SES1030J	SES1516J	SES1530J	SES2016J	SES2020J
	Power unit		Electric
	Operation		Handle
	Rated traction weight	Q (t)	1		1.5		2
	Load centre	c (mm)	450
	Axle centre to fork face	x (mm)	705	700	705	700	705	700
	Wheel base	y (mm)	1190
Weights	Service weight with battery	kg	315	380	320	395	325	380
Wheels/Tyres	Wheels type		Nylon/PU
	Driving wheel size	Φ×w(mm)	Φ180×50
	Bearing wheel size	Φ×w(mm)	Φ74×70
	additional wheels（dimensions）	Φ×w(mm)	Φ180×50
	Wheels, number front/rear (x = driven)		1，1/2
	Track width	b10 (mm)	648
	Track width	b11 (mm)	390/490		390/490		390/490
Dimensions	Height of mast, lowered	h1 (mm)	2077	2077	2077	2077	2077	1577
	Lift	h3 (mm)	1600	3000	1600	3000	1600	2000
	Height of mast, extended	h4 (mm)	2077	3567	2077	3567	2077	2567
	Fork Height，Lowered	h13 (mm)	85
	Overall length	l1 (mm)	1600/1800
	Length to fork face	l2 (mm)	700
	Overall width	b1/ b2 (mm)	760/964
	Fork dimensions	e/l (mm)	60/150/900（1100）
	Width of forks	b5 (mm)	550/640		550/640		550/640
	Min.Ground clearance	m2 (mm)	27
	Aisle width with pallet 1000 x 1200 across forks	Ast (mm)	2250
	Aisle width with pallet 800 x 1200 along forks	Ast (mm)	2240
	Min.Turning radius	Wa (mm)	1350
Performance	Lifting speed, with/without load	(mm/s)	60/100		50/120		45/110
	Lowering speed, with/without load	(mm/s)	150/130		150/130		110/80
	Service brake		Machinery
Drive	Lift motor rating at S3 15%	(kW)	1.6
	Battery voltage/rated capacity	(V/Ah)	12/120
	Battery weight (± 5%)	(kg)	36
Others	Noise level at operator‘s ear	(dB(A))	≤70
